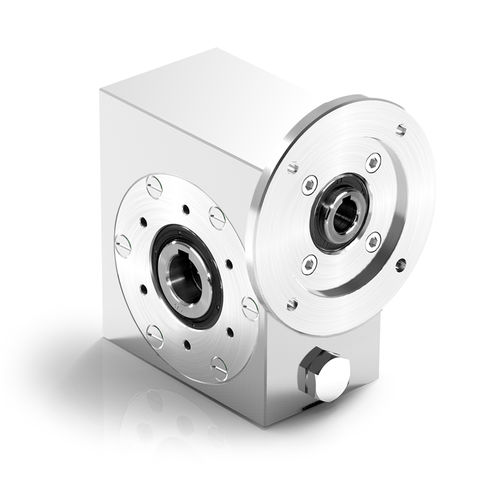

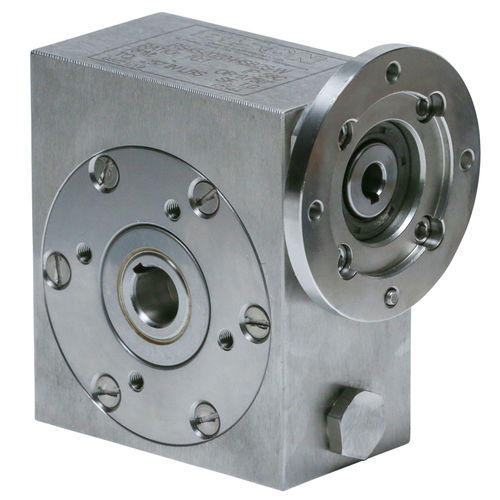

Bison's Stainless Steel S Series right-angle worm reducer is perfect for harsh washdown conditions in food processing or other applications with high temperature/high pressure sprays. The S Series comes standard supplied with synthetic oil for lifetime lubrication and is comprised of a stainless steel housing that is designed for protection in washdown applications, also designed for multiple mounting configurations.

Options
Protective seals cup to withstand high pressure cleaning for hollow or extended shaft version.

Output shaft
Interchangeable right or left hand output shafts available.

100% Factory
Pressure Leak Tested

Viton ® Output Seals
With external dust protection lips standard

Single-Piece Stainless Steel Alloy Housing
Special housing designed to keep adequate lubrication with low oil quantity to avoid internal pressures.

Flange
Fully modular to NEMA C Flange or IEC B14.

Second Bearing
Standard second bearing on motor flange side.

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	200 - 500 20 - 50 50 - 100 10 - 20
Shaft configuration	hollow-shaft
Performance	high-power
Applications	for medical devices for food industry machinery shaft
Other characteristics	modular flange stainless steel IEC B14 high-temperature washdown
Rotational speed (rpm)	17.2 - 250
Gear ratio (unit)	7 - 102
