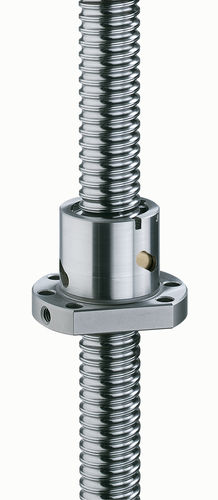

Ball screw drives KGT consisting of ball screw and ball screw nut are available as standard in rolled and whirled design, also stainless steel? ?
spindle accuracy class T7 (52µ/300 mm standard)
gothic profile (ogival profile)
pitch up to 50 mm
production of special threads or Special pitches possible
Cost-effective for small and medium quantities
Excellent running characteristics
Matching ball screw nuts in various designs complement the ball screw drive
Design of the ball screw nut according to DIN 690151, available with lubrication and mounting holes as well as with keyway

Our extensive range of thread drives includes trapezoidal thread spindles and ball screws and a variety of different nuts such as cylindrical DIN and flange nuts as well as individual nuts according to customer requirements.

Ball screw nuts
• Cylindrical nut or flange nut
• Single or prestressed nut

Parameter Name	Parameter Value
Material	stainless steel
Type	rolled
Other characteristics	cost-effective
Diameter (mm)	12 - 160
