SSI signal converter SK20

SSI signal converter SK20

SSI signal converter SK20

About

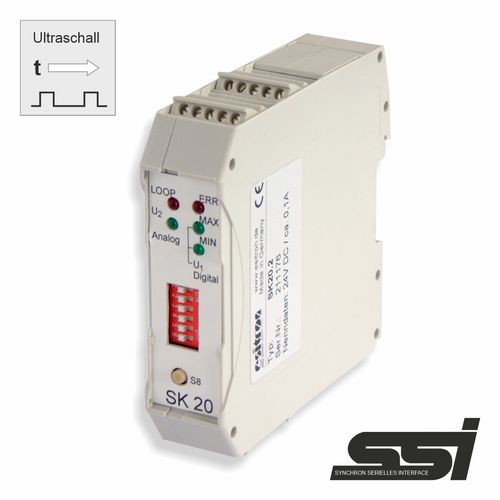

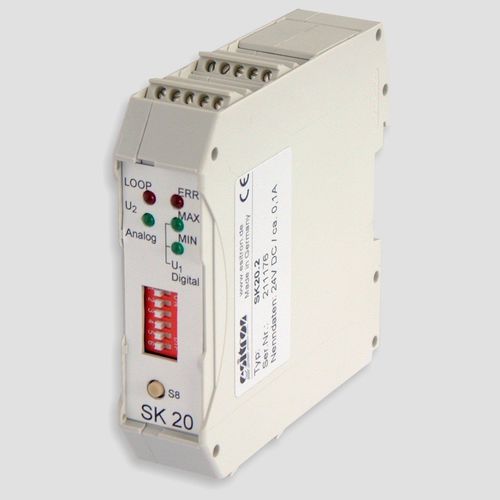

The SK 20 is a signal converter which converts encoder data into voltages of 0-10V or currents of 0/4-20mA. It is equipped with an SSI or a synchronous serial interface. The encoder is compatible with single turn and multiple turn encoders of at most 25 bits. Its resolution analog output is 16 bits. Furthermore, the minimum and maximum values can be programmed arbitrarily.

Signal type:
1.: SSI (Synchronous Serial Interface, used by industrial encoders);
2.: Start-Stop-Pulse (used by industrial linear Encoders like Balluff, MTS and others)



PARAMETERS

Parameter Name Parameter Value
Signal type
  • SSI
  • start/stop pulse
Other characteristics
  • DIN rail
  • galvanically-isolated
  • digital
