About

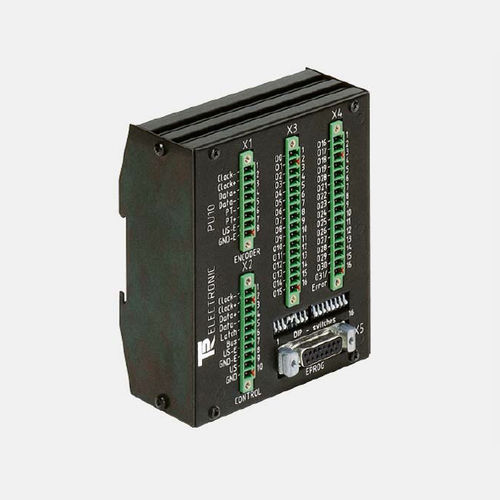

. Module to convert of synchronous serial data into parallel data (32 bits)
. Master Mode (no external clock is necessary)
. Monitor Mode (external clock is necessary)
. RS485 interface connection for programming the encoder parameter
Electrical Data
Operating Voltage .....................................................11-29 V DC
Power Dissipation (no load) ......................................< 2 Watt
Programming Unit .....................................................PC IBM Compatible EPROG Software, PT-100N Programming Terminal
Programming Interface..............................................RS485
Encoder-Module........................................................SSI (synchronous-serial)
Clock Output .............................................RS422 (2-wire)
Clock Frequency .......................................80 kHz ... 1 MHz
Data Input..................................................Optocoupler
Control Module..........................................................SSI
Clock Output .............................................Optocoupler
Clock Frequency .......................................80 kHz ... 1 MHz
Data Output...............................................RS422 (2-wire)
Monitor Mode
DIP-switch 16 = OFF.................................Mono time 12 μs
DIP-switch 16 = ON ..................................Mono time 24 μs
Master Mode
Sends periodically .....................................The system periodically transmits 81 clock pulses and a 17 clock
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
SSI
|
| Other characteristics |
|
