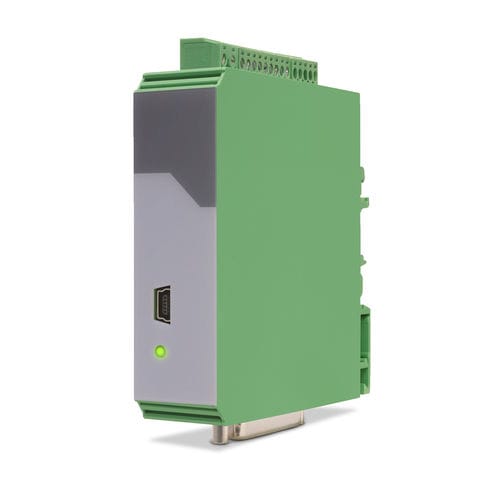

The IP210 is the functionally compatible and more powerful successor to our proven signal converter IP251.

The signals recorded via the SSI input are converted precisely and quickly by the IP210 converter into a parallel binary, Graycode or BCD format.

Technical data
- SSI input with format DATA+, DATA-, CLOCK+, CLOCK- up to 32 Bit
- Impulse inputs A, B [HTL], A, /A, B, /B [RS422, HTL]
- 3 control inputs (Hold) for PNP signals [10 ... 30 VDC]
- Start-stop interface for absolute transducers and magnetostrictive sensors
- Input frequency up to 1 MHz
- 25-bit parallel output push-pull in BCD, binary or Gray code format
- Power supply 18 ... 30 VDC
- Compact housing for mounting on 35 mm top-hat rail (according to EN 60715)

Parameter Name	Parameter Value
Signal type	SSI
Other characteristics	DIN rail parallel
