API 613 spur gearboxes adapted and technically enhanced to meet the highest requirements; instruments and documentation suitable for specifications in the field of oil and gas engineering.

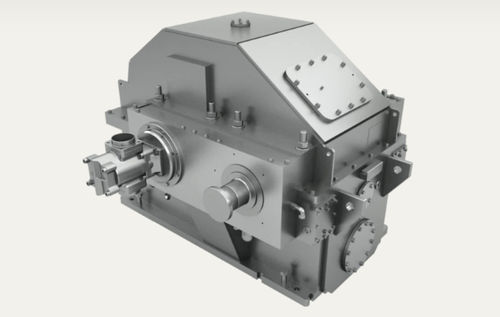

The turbo gearbox of the TA..XI type is based on a single-stage gearbox concept for high-speed applications with variable center distances and housing widths, which are optimized precisely according to the respective applications. These gearboxes are primarily used in the oil and gas industry as well as in the field of energy production. This range holds the world record as the most powerful gearbox in the turbo gearbox market with an output of 140 MW. They are designed according to API, AGMA, ISO, and DIN and set the standard for turbo gearbox technology in terms of quality, efficiency, and availability.

Features
Maximum flexibility and adaptability to specifications / customer preferences

Very short shaft overhangs for excellent rotordynamic vibration characteristics.
Best possible efficiency that can be achieved by conventional means
Optimized gear tooth geometry in terms of efficiency, noise, and vibration excitation
Individually calculated, optimized bearing geometries for every application scenario
Flexible housing concept for transmitting the highest power requirements
Basis for etaX gearbox concept for reduced power losses
Approved as per the DNV, GL, and LR classifications
Maintenance-friendly due to instruments on lower section of housing

Parameter Name	Parameter Value
Type	helical spur
Number of stages	single-stage
Performance	high-speed
Applications	shaft
Rotational speed (rpm)	0 - 20000
Power (W)	0 - 0
Gear ratio (unit)	1 - 11
