Double stage high precision high torque density gearbox

Overview

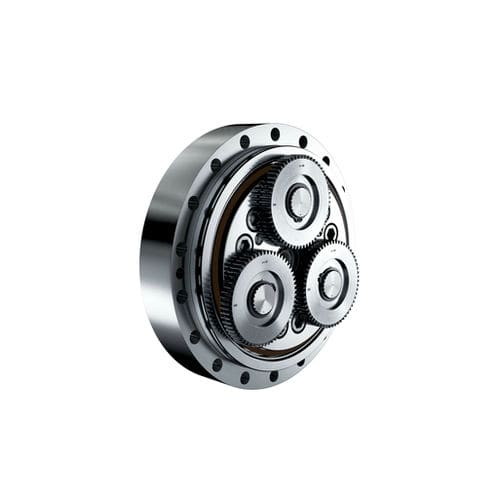

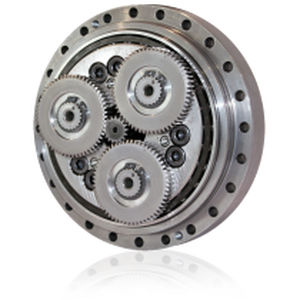

Spur gear pre-stage and three to four (UA115) eccentrics providing highest transmission accuracy, minimum speed ripples and minimum vibration.
The new UA series offers further improved performance data in regards to torque density, positioning accuracy and movement accuracy. It's high efficiency even at low speed and the improved output bearings are to be mentioned in addition to that.
Less than 0.5 arcmin Lost Motion
Ideal for applications with traverse movements
Highest Torque density available on the market
Highest overall available Torque
High input and output speeds possible
Additional ratios available on request
Variants:

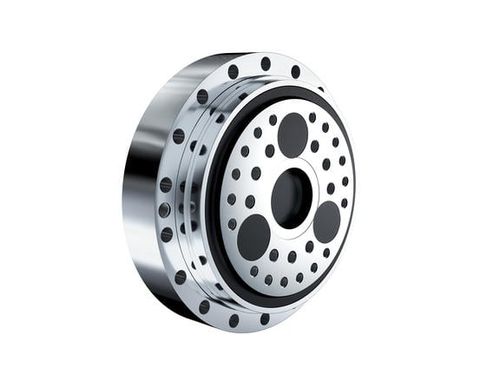

Basic design to be fully integrated in robotic arms
Fully sealed version including motor flange available

Advantages of Fine Cyclo UA-Series
Extremely smooth traverse movements
High Torsional Stiffness
up to 6000 Nm/arcmin
Smallest Moments of Inertia
Huge Overload Capacity
Up to 60000 Nm Momentary Peak Torque
Up to 88000 Nm Momentary Bending Moment
High Efficiency
Easy Assembly And Motor Mounting

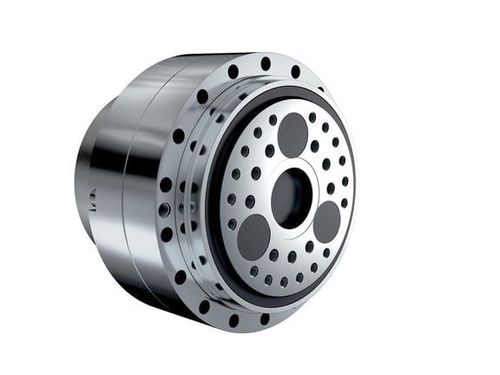

Fully sealed version including motor flange and customised input shaft

Parameter Name	Parameter Value
Type	helical spur
Shaft orientation	concentric
Torque (Nm)	200 - 500 100 - 200 10000 - 10000 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Performance	precision
Applications	transmission
Other characteristics	double
Rotational speed (rpm)	0 - 60
Gear ratio (unit)	60 - 283
