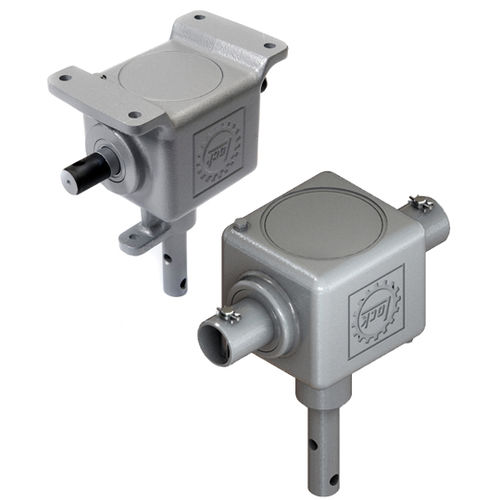

90° deflection gear unit for operating ventilation shafts in greenhouses, halls and barns, for use in plant construction for the distribution of forces, of our shaft drives.

Cast iron housing with crown gear and spur gear made of steel (similar to bevel gear). Sealed housing.

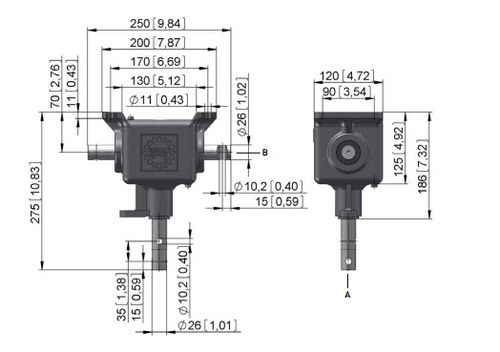

Drive shaft: We 07 (Ø 26) for 1" tube.

Output shaft: For KGO 31 = We 06 (Ø 26) for 1" tube, for KGO 32 = We 73 (sleeve shaft for 1“-tube + 2 x pin).

minimum order quantity 5 pcs

Parameter Name	Parameter Value
Type	spur
Shaft orientation	right angle
Torque (Nm)	200 - 500
Applications	for shaft
