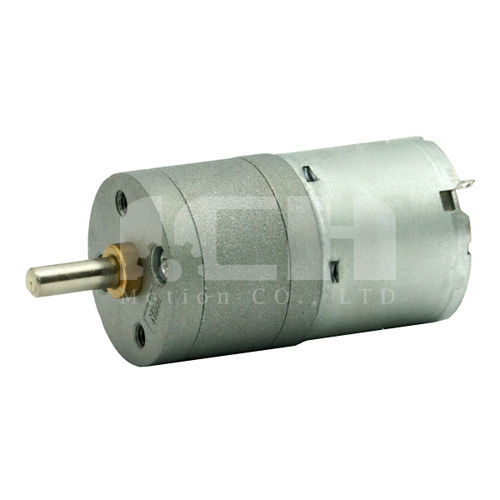

25mm DC Geared Reducer
Manufacturer Part Number: D252A4
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:9.7~1:498
•Geared Motor Reducer Voltage: 6V,12V
• Reduced Motor Size: 25mm
• Application: Robot Motor, Measuring Instrument Motor, Audio Equipment Motor, Medical Instrument Motor

Parameter Name	Parameter Value
Type	spur
Shaft orientation	coaxial
Torque (Nm)	0.1 - 0.2 0 - 0.1 0.2 - 0.5 0.5 - 1
Performance	high-torque
Applications	for medical devices for robots
Rotational speed (rpm)	9 - 100
Power (W)	0.8 - 1
