Galbiati Group designs and manufactures gear drives for cable way applications with output torque from 80 kNm to over 900 kNm for cable car, chair lift, cable way, and cable railway winches. Sizing, inspection, and certification meet the current regulatory requirements for public transport safety.

Hoisting gearboxes are used in a number of applications: blondins, harbor cranes, marine winches, and special winches.

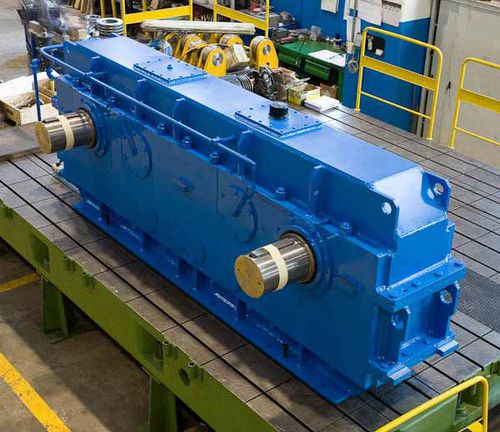

See following the winch drive installed on the panoramic elevator, “Bigo”, in Genoa, manufactured for Kone S.p.A. Italia to update and meet the new safety regulations. Winch drive, sized with high service factor, nominal power 480 kW at 11.3 rpm. NiCrMo carburized gears high-quality tooth profile ground.

Parameter Name	Parameter Value
Type	spur
Shaft orientation	right angle
Torque (Nm)	10000 - 10000
Applications	for aerial cable applications
Rotational speed (rpm)	11.3 - 11.3
Power (W)	480000 - 480000
