Disc motor drives
With their very flat design and high power density, these drives offer the maximum use of installation space.

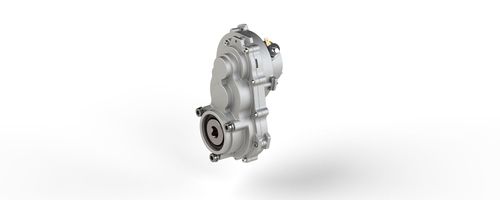

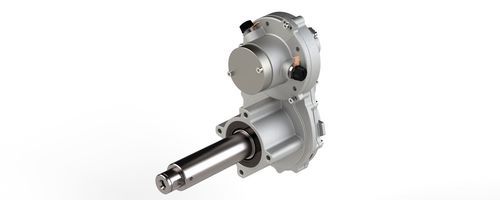

The drives consist of a powerful pancake motor or disc motor combined with a spur gear set and are ideal for integration in stair lifts or stair climbers.

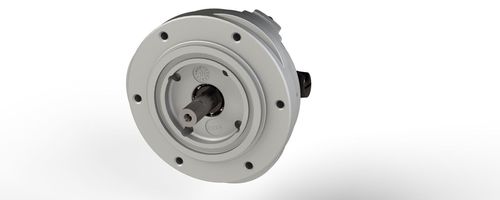

We offer the solution that meets your needs: our disc motors are available as complete drives with gear, motor and brake or as single motor with or without brake.

Technical data:
•Low gear backlash of < 0,5°
•Output speed from 20 – 120 rpm (revolutions/minute)
•Very low noise level (less than 55db at idling speed)
•Rated power from 150 - 250 Watt
•Various output shaft diameters
•Motor speed up to 3000 - 6000 rpm (revolutions/minute)
•Operating voltage 24 V DC
•Lifetime lubrication
•Holding brakes
•with manual release by lever or rope
•12V or 24V
•braking torque 3Nm
•braking torques on the output shaft from 120Nm to 535Nm
•Other voltages and speeds are available on request
•Optional with encoder
•Other options available

Parameter Name	Parameter Value
Type	spur
Shaft orientation	parallel-shaft
Torque (Nm)	200 - 500 100 - 200 500 - 1000
Performance	low-backlash low-noise high-power
Other characteristics	shaft-mounted combined manual
Rotational speed (rpm)	20 - 120
Power (W)	150 - 250
