Additional information
Width x height mm:68,25 x 64
Rated Voltage VDC:24
Rated Torque Ncm:50 – 130
Speed rpm:92 – 244

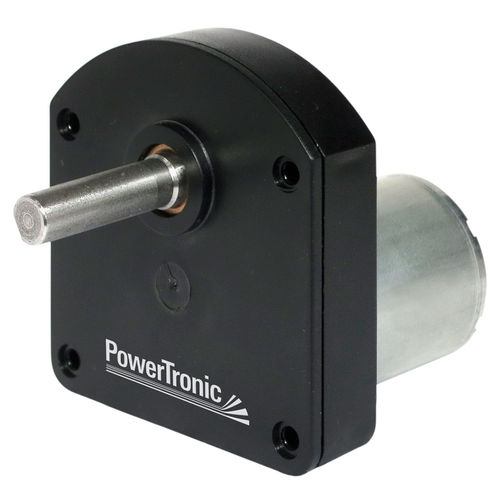

Gearmotor
Gear Ratio:16, 19.1, 37.3, 42
Rated Torque (Ncm):50, 59, 115, 130
Rated Speed (min '):244, 203, 104, 92

Rel. Humidity: 20 to 85%
Ambient Temp.: -20 to +80#C
Net Weight max 0.25 kg

Motor
Rated Voltage (V) : 24
No Load Speed (min') : 4700
No Load Current (A) : 0.26
Rated Speed (min') : 3900
Rated Current (A) : 0.6
Rated Torque (Ncm) : 3.6
Rated Power (W) : 14.7

Radial Load (FR): 130N (10mm from face mountmg)
Axial Load (FA): 50N

Options
- Encoder
- Rear Shaft
- Leads Connector
- Spécial Shaft

Parameter Name	Parameter Value
Motor type	BLDC
Type	spur
Shaft orientation	parallel-shaft
Power (W)	10 - 50
Voltage (V)	24 - 24
Torque (Nm)	1 - 5 0.5 - 1
Product applications	industrial
