About

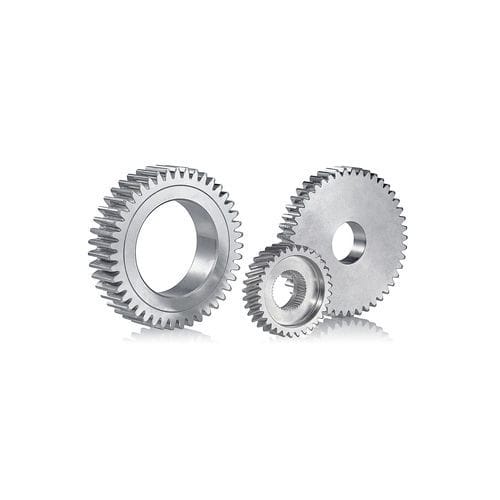

Spur gears, also known as cylindrical gears, are the gears most commonly used in gear units. Their main feature is a relatively simple design. Smaller or larger numbers of spur gears can be installed in gear units. These may require few moving parts, depending on the specific application and requirements – in contrast, for example, to ring gears in planetary gear units or worm gear units.

Spur gears have evenly spaced teeth around their circumference for intermeshing with other gears. Gear combinations for spur gears can be produced in different versions and sizes which are called modules.
A spur gear is ultimately used in a cylindrical gear unit. The simplest and most common design is the single-stage gear unit in which two gears are mounted on a shaft. When more gears and intermediate shafts are added, the result is a multistage gear unit.
Gears are also classified by their tooth angle – the pattern of the teeth can be straight, helical, or even double helical. In the case of the straight version, 1 to 3 teeth are normally engaged at one time. To transmit sufficient power, a tooth must always mesh with its counterpart.
Often, however, helical gearing is used – for example, to reduce noise. The meshing of spur gear is much smoother and the length of the path of contact is longer.

Helical gears have one disadvantage: Lateral forces are generated that have to be structurally supported by bearings in the cylindrical gear unit.



PARAMETERS

Parameter Name Parameter Value
Type
spur
Teeth
helical
Other characteristics
shaft
