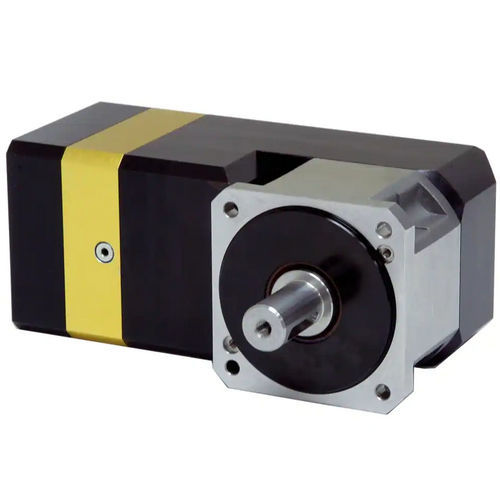

Parker’s RX-series planetary gearheads provide exceptional value along with high performance to meet your applications torque, inertia, speed and accuracy requirements. The right angle design ensures a compact envelope size making it an easy fit in the smallest of spaces. Available in multiple frame sizes and ratios to meet a variety of application requirements.

Markets
• Industrial automation
• Semiconductor and electronics
• Food and beverage
• Health and beauty
• Life science
• Robotics
• Military

Features and Benefits
• Right angle design to decrease overall gearhead and motor length
• Helical gears provide more torque capability, lower backlash, and quiet operation
• Ring gear cut into housing provides greater torsional stiffness
• Widely spaced angular contact bearings provide output shaft with high radial and axial load capability
• Plasma nitride heat treatment for gears for excellent surface wear and shear strength
• Sealed to IP65 to protect against harsh environments
• Mounting kits for direct and easy assembly to hundreds of different motors

Applications
• Packaging
• Processing
• Bottling
• Milling
• Antenna pedestals
• Conveyors
• Robotic propulsion and ancillary axis

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Torque (Nm)	10 - 20 20 - 50
Performance	precision
Applications	for conveyors for milling applications
Other characteristics	compact NEMA 23 NEMA 34 for packaging for robotics IP65
Rotational speed (rpm)	6000 - 6000
