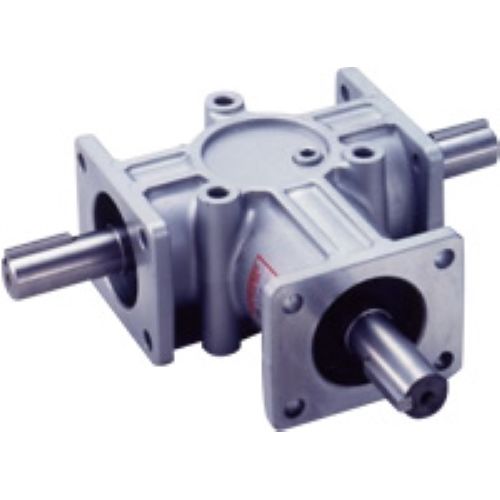

Features
Light weight and durable -
The case is manufactured from a corrosion resistant aluminum alloy with a baked finish for superior durability combined with light weight.

Flexible installation direction -
It is possible to install the unit in any direction and installation is easy.

Low noise and high efficiency -
A spiral bevel gear is used that is heat-treated before lapping to produce smooth operation.

Maintenance free design -
Long-term use is possible because the unit is filled with high-grade grease.

Usable with special products -
When an application requires corrosion resistance, Makishinko can also use stainless steel for the shaft.

Structure
- This series uses a spiral bevel gear. After a special steel is heat treated, it is finished with lapping to improve accuracy.
- The shaft is made of heat-treated carbon steel in order to provide sufficient durability versus bending force.
- The bearing is a deep groove ball bearing.
- Shaft "A" is supported with cantilever support while shaft "B" is supported from both sides.
- The housing is manufactured from corrosion resistant aluminum alloy.

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Shaft configuration	solid-shaft dual-shaft
Performance	high-efficiency low-noise maintenance-free
Other characteristics	aluminum
