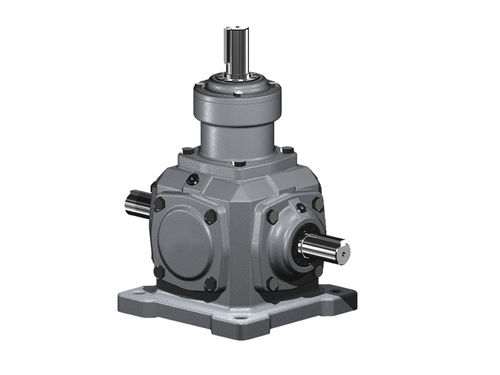

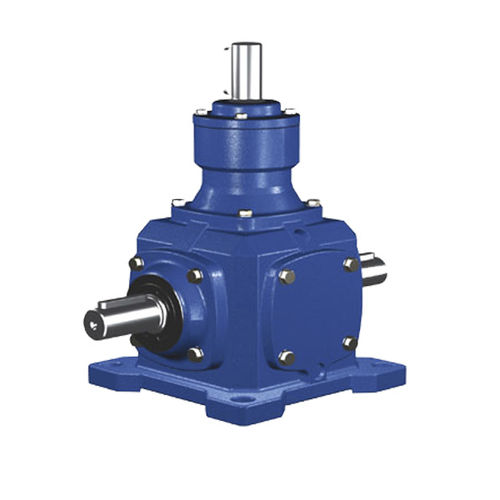

T Series Spiral Bevel Gearbox/Gear Unit
Rated Power: 0.014~335kW
Max. Torque: 11~3677N.m
Input Speed: 10~1450r/min
Ratio: 1~3
Output Speed: 3.3~1450r/min
Gear Arrangement: Spiral Bevel Gears
Shafts Position: Right Angle, Cross
Housing: Casting Iron

AOKMAN® T series spiral bevel gear units, some aliases are right angle steering gearboxes, cross steering gearboxes.

Components:
1. Housing: Gray Cast Iron
2. Gear Set: Spiral Bevel Gear Pair
3. Input Configurations:
Single Keyed Input Shaft
Double Keyed Input Shafts
4. Output Configurations:
Single Keyed Output Shaft
Double Keyed Output Shafts

Models:
T2~T25

Features:
1. Sturdy cast iron gear box, hardened spiral bevel gears meshed in pairs, and strong bearings all contributing to reliable and optimized performance
2. A wide range of frame sizes, can be configured with different shaft configurations and gear ratio
3. Low noise, light vibration and large load capacity
4. Multiple mounting positions
5. Spiral bevel gears can be bidirectional rotation, smooth operation at low or high speed

Ratio: 1:1, 1.5:1, 2:1, 2.5:1, 3:1

Applications:
Side By Side Transmission Device
Stereo Garage
Lifting Device
Playground Equipment
Packing Machine

Installation:
Foot Mounting
Flange Mounting

Lubrication:
Grease Lubrication

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Performance	low-noise
Applications	shaft transmission
Other characteristics	flange large
Rotational speed (rpm)	3.3 - 1450
Power (W)	10 - 335000
