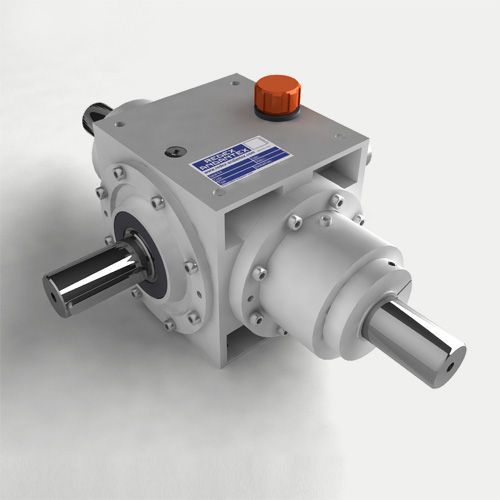

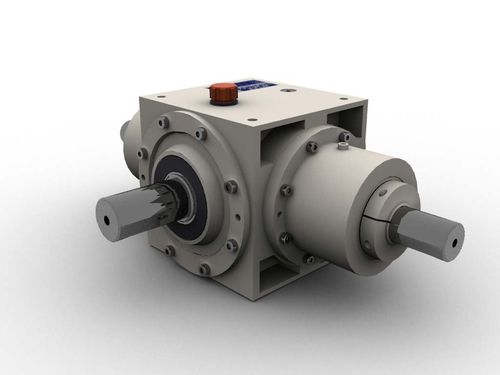

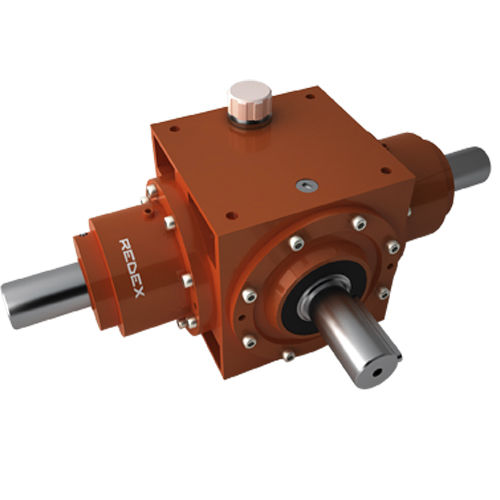

The R-Series is an additional family to the Z-Series. The R-Series comes in 3 sizes and 3 different ratios.

It is designed with compact shaft or hollow bore choices. The series has an efficiency rating of 95 – 98 %, and maximum rotation speed up to 6000 RPM.

The units have a heavy-duty construction, and are ATEX compatible. They can also be supplied with spiral bevel gears and low backlash.

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Torque (Nm)	10000 - 10000 200 - 500 100 - 200 500 - 1000 20 - 50 50 - 100 1000 - 2000 2000 - 5000 10 - 20 5000 - 10000 5 - 10
Shaft configuration	solid-shaft hollow-shaft
Performance	low-backlash for heavy loads
Applications	shaft
Other characteristics	compact ATEX
Rotational speed (rpm)	0 - 6000
Power (W)	500000 - 500000 200000 - 200000
