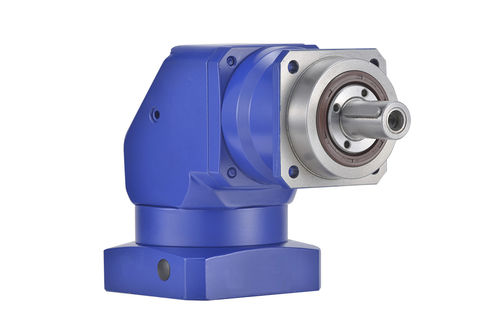

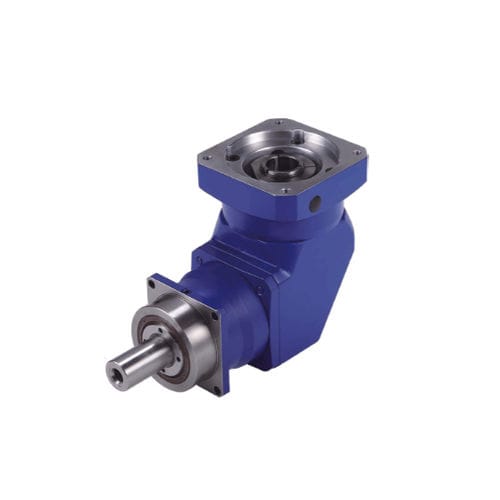

Spiral bevel gear reducer PGR series

Spiral bevel gear reducer PGR series

Spiral bevel gear reducer PGR series

About


PGR-series use Spiral bevel gear and precision grinding gears, smooth teeth surface, and high accuracy. High Input speed. High strength and lightweight aluminum casing.

1. High Positioning Accuracy
Precision grinding gears, smooth teeth surface, and high accuracy.
Single-piece structured ring gear with housing, alloy steel, high reliability.

2. High torsional Rigidity
Use superior taper roller bearing can bear much more axial and radial loads, high torque, and widespread application.


3. Low Backlash
Precision process and strict quality control:
Micro backlash one stage ≦2 arcmin , two stage ≦4 arcmin
Reduced backlash one stage≦4 arcmin , two stage ≦ 6 arcmin.
Standard backlash one stage≦6 arcmin , two stage ≦ 8 arcmin.

4. High Efficiency
One-stage 97%, Two-stage 94%



PARAMETERS

Parameter Name Parameter Value
Type
spiral bevel
Shaft orientation
right angle
Torque (Nm)
  • 200 - 500
  • 20 - 50
  • 100 - 200
  • 50 - 100
  • 500 - 1000
  • 1000 - 2000
  • 2000 - 5000
  • 10 - 20
  • 5000 - 10000
Shaft configuration
solid-shaft
Number of stages
  • single-stage
  • two-stage
Performance
  • for heavy loads
  • high-precision
  • high-performance
  • low-noise
  • low-backlash
  • high-efficiency
  • high-torque
  • maintenance-free
  • high-rigidity
  • high-speed
  • high-capacity
Applications
  • for servo motors
  • for heavy-duty applications
  • for industrial applications
  • for machines
  • for lathes
Other characteristics
  • compact
  • industrial
  • modular
  • aluminum
  • for machine tools
  • high-quality
Rotational speed (rpm)
2500 - 6000
Backlash (°)
0.03 - 0.13
