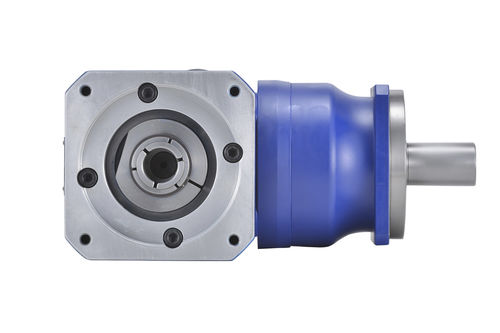

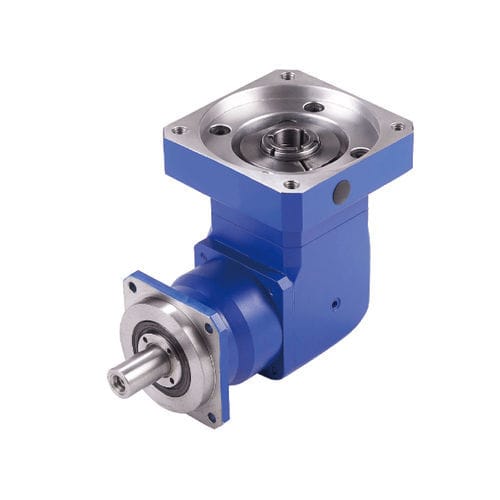

AGR Series
Spiral bevel gear designed and gear lapping processed: gear surfaces are smooth and precision. High-speed input is available. The right-angle case is designed and made of high strengthened aluminum alloy for weight decreasing.

1. Low Backlash
Precision process and strict quality control:
Micro backlash one stage ≦2 arcmin , two stage ≦4 arcmin
Reduced backlash one stage≦4 arcmin , two stage ≦ 6 arcmin.
Standard backlash one stage≦6 arcmin , two stage ≦ 8 arcmin.


2. High Efficiency
Stage one: ≤ 97% Stage two: ≤ 94%

Parameter Name	Parameter Value
Type	spiral bevel
Shaft orientation	right angle
Torque (Nm)	200 - 500 20 - 50 100 - 200 50 - 100 500 - 1000 1 - 5 1000 - 2000 2000 - 5000 5 - 10 10 - 20
Shaft configuration	solid-shaft
Number of stages	single-stage two-stage
Performance	precision high-performance low-noise low-backlash high-efficiency maintenance-free high-speed high-capacity
Applications	for servo motors for robots for automation for machines
Other characteristics	compact industrial modular aluminum high-quality
Rotational speed (rpm)	2500 - 6000
Backlash (°)	0.03 - 0.13
