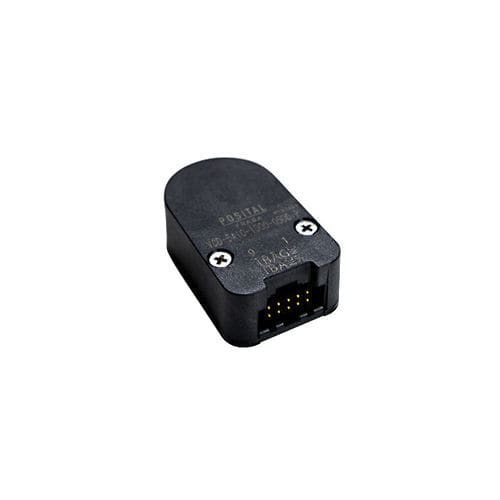

Interface - Incremental RS422
Pulses per Revolution - 1000, 1024
Output Incremental - A, /A, B, /B, Z, /Z
Remarks - PPR: 1000, 1024
Outputs -
Output Driver - RS 422 (TTL)
Output Voltage High Level RS422 (TTL) - Condition: current max. -20 mA, min. 2.4 V; condition: no...
Output Voltage Low Level RS422 (TTL) - Condition: current max. +20mA, max. 0.4 V; condition: no ...
Output Rise Time - 110 ns
Outfall Fall Time - 100 ns
Index Pulse Width - P0: in electrical °: Min. 60, typ.: 90, max: 120
Index Pulse Rise Time - t1 in ns: min. 50, typ. 100, max. 200
Index Pulse Fall Time - t2 in ns: min. -10, typ. 15, max. 25
Maximum Switching Current - 8 mA per Channel
Connector - Latching Pin Connector, 10 pin
Electrical Data -
Supply Voltage - 4.5 – 5.5 VDC
Current Consumption - CPR < 500, no load: typ. 29 mA, max. 36 mA,
CPR ≥ 500, no load: typ. 56 mA, max. 65 mA
Power Consumption - ≤ 0.7 W
Reverse Polarity Protection - No
Short Circuit Protection - No
Max Load Capacitance - 100 pF
Max. Permissable Electric Speed - minimum value of [ (18*10^6)/PPR and 60000 ] 1/min
EMC Electrostatic Discharge - ± 4 kV, IEC 61000-4-2
MTTF - 6404 years @ 20°C and 40 % relative humidity
Sensor -
Technology - Optical
Resolution Singleturn - Incremental with Index (Kit)
Resolution Multiturn - 0 bit
Phase Angle - Pulse diagram Z: 90° ±30°
Duty Cycle - Pulse diagram X,Y: 180°±30°

Parameter Name	Parameter Value
Measured physical value	speed
Applications	for coordinate measuring machines
Mounting	kit
