General

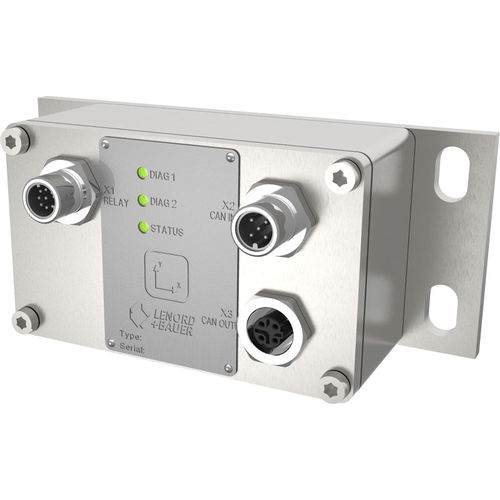

 3-axis tower oscillation monitor in compact design
 Redundant system with two independent CPUs and two
oscillation monitors arranged at 45° to each other
 Two integrated safety relays with mechanically interlocked contacts as per EN 50205 class. A switch on
reaching the adjustable limits
 Maintenance and wear-free operation due to MEMS acceleration sensors
 Measuring system is not subject to ageing, is insensitive
to temperature fluctuations, dirt or condensation
 Trigger criterion either evaluation of the geometric sum of
the limits or axis-related evaluation
 Unambiguous hole pattern in the base plate identifies the
mounting position
 Full function in case of condensation: dew-point resistant!
Features
 Measuring direction X, Y and Z
 Resolution 0.01 m/s2
 Extended temperature range -40 °C to +85 °C
 Interfaces:
- CANopen
- Factory-adjusted safety relay outputs
 Protection class IP 67
 Maximum installation altitude 4000 m
 Performance Level PLd as per DIN EN ISO 13849
Advantages
 Appropriate for safety application with PLd requirement
as per DIN EN ISO 13849
Field of application
 Wind power

3-axes tower oscillation monitor in compact design
Redundant system with two independent CPUs and two oscillation monitors arranged at 45° to each other
Appropriate for safety application with PLd requirement as per DIN EN ISO 13849 (SIL2)

Parameter Name	Parameter Value
Type	speed
Applications	for safety for wind turbine
Configuration	compact
Other characteristics	triaxial
