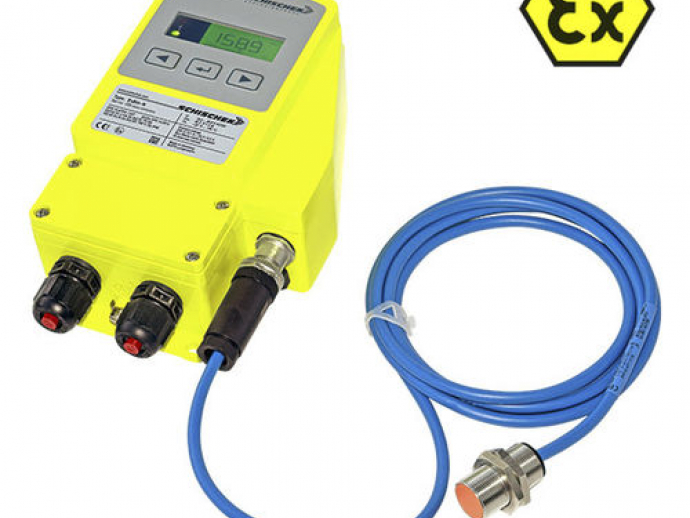

Binary explosion proof fan (drive) belt monitoring module type ExBin-N for speed control in HVAC systems.

- Speed control range: 0-10.000 U/min-1
- incl. directly mountable inductive Namur transmitter acc. DIN 19234
- Certified according to ATEX, IECEx and more
- use in hazardous locations
- for all kind of gas, mist, vapours and dust
- no additional module in the panel required
- no intrinsically safe wiring required
- 24 VAC/DC supply
- Switch-point in min-1 adjustable digital
- integrated adjustable time switch relais
- 1-channel with 1 potential free contact
- 2-channel with 2 potential free contacts (optional)
- Switching status display with LED
- Display with actual value indication
- Aluminium housing IP66
- integrated terminal box
- Dimensions (H × W × D) 180 × 107 × 66 mm
- Weight approx. 1 kg, VA version approx. 2,3 kg
- Stainless steel version or with offshore/marine coating optional
- ExBin-N for use in Zone 1, 2, 21 and 22
- RedBin-N for use in zone 2 and 22
- InBin-N for use in safe area (industrial applications)

Parameter Name	Parameter Value
Type	speed
Applications	for HVAC belt
Configuration	compact
Other characteristics	digital binary explosion-proof
