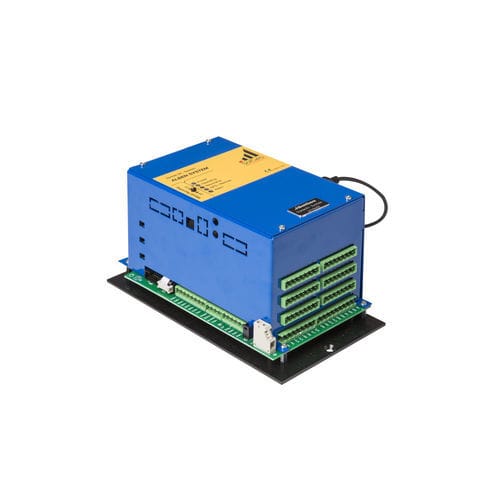

The DYMAS24-ALBEN is a multi-channel acquisition system suitable for long-term monitoring of dams and structures in general where it is required the installation of many dynamic sensors, accelerometer or velocimeters.

MULTICHANNEL RECORDER
• Up to 30 channels
• Standard guidelines UNI 4150-3, DIN45669-1, UNI 9916, EN61000 61326-1
• 24 bit multichannel sampling
• 10Hz - 8Khz sample rate
• Bandwidth DC - 3,2 kHz
• Continuos, scheduled and/or triggered recording
• Built-in in sensor test function
• 32 GB internal SD memory
• Seismometers and/or accelerometers connection

APPLICATIONS
• civil and industrial long-term monitoring

DETAILS
This digital acquirer allows to acquire up to 30 channels (in the standard version, up to 60 channels optional) in multiples of 6, placed in a single cabinet with wall or floor fixing.

The communication system runs via LAN; the remote connection to the system can be made via optional 4G modem, FIBER OPTIC, WiFi.
The software DYMASOFT, integrated with the data processing software VIBROSOFT or SOLWEB, allows to realize efficient dynamic monitoring networks.

Dimentions: 2080x200x130 up to 18 CH- 280x200x160 mm
Weight: 2,6 kg

Parameter Name	Parameter Value
Measured physical value	voltage, vibration, speed, seismic
Number of channels	32-channel
Mounting	fixed wall-mounted
Applications	simultaneous sampling for accelerometers for seismometer
Domain	industrial for civil engineering for building for offshore platforms mining and quarrying
Options and accessories	Ethernet multi-channel analog input with data recording system high-resolution programmable digital I/O with data transmission with data logger compact
