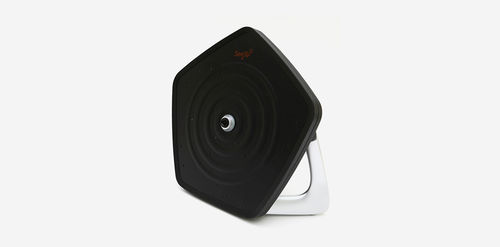

SeeSV-S205W is a real-time handheld sound camera which implements FPGA-based high speed beamforming technology. SeeSV-S205W is developed for Buzz, Squeak and Rattle (BSR) noise source detection as well as Noise, Vibration and Harshness (NVH) source visualization. It displays transient noise effectively due to its high image per second update rate. The unique design of SeeSV-S205W makes measuring sound easy

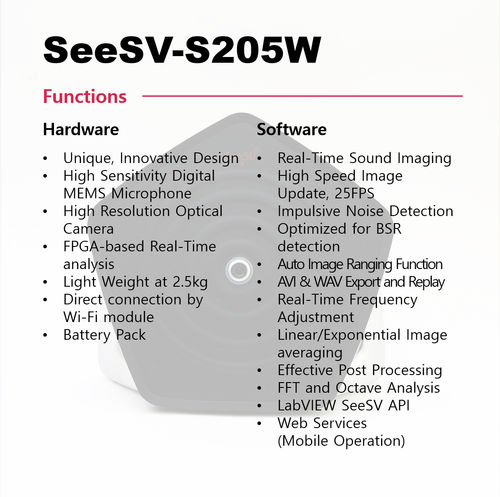

Features

Hardware

Unique, Innovative Design
High Sensitivity Digital MEMS Microphone
High Resolution Optical Camera
FPGA-based Real-Time Analysis
Light Weight at 2.5 kg

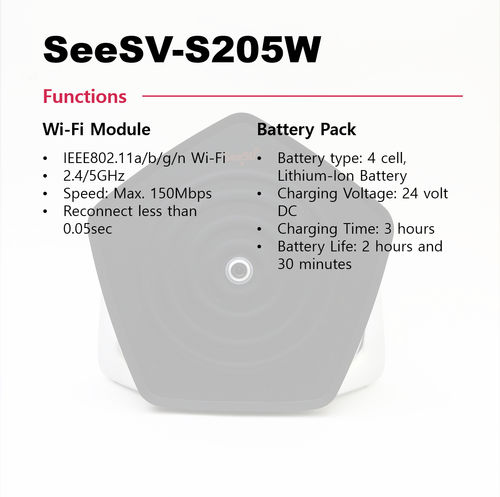

Wi-Fi module
Battery pack inside the camera

Software

Real-time Sound Imaging
High Speed Image Update, 25 FPS
Impulsive Noise Detection
Optimized for BSR detection
Auto Image Ranging Function
AVI & WAV Export and Replay
Real-Time Frequency Adjustment
Linear/Exponential Image Averaging
Effective Post Processing
FFT and Octave Analysis

Applications

BSR Noise Detection
NVH Noise, Power Train Noise Detection
Noise Leakage Detection

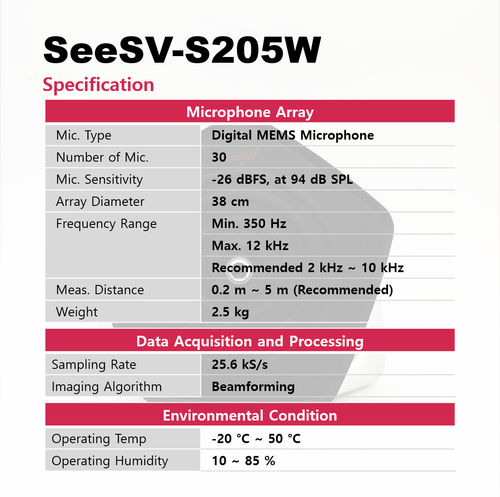

Parameter Name	Parameter Value
Function	spark optical emission acoustic
Spectrum	full-color
Other characteristics	wireless
