About

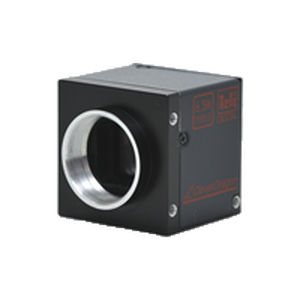

Ultra High Resolution Camera installed 6.5 Mega pixels CMOS sensor.
Key Features
High speed output at High-resolution pixel
The TOSHIBA TELI’s proprietary 1.1 type 6.5Mega pixels High-resolution CMOS sensor outputs the entire 6.5Mega pixels in a speed as 85fps(standard) or 99fps(max.).
Global electronic shutter
Global electronic shutter makes the clear imaging possible even with faster-moving object.
Random Trigger shutter
It is possible to grab and transfer the image on desirable timing by external trigger input.
WOI(Window of interest)
It is possible to read out desirable area by specifying Vertical and Horizontal position.
Binning
By reading 2(H)x 2(V) pixels or 4(H) x 4(V) piels as one pixel,it is posssible to get fasterimage in all area.
PoCL interface
By using a cameralink capable frame grabber board to which power can be supplied,high speed transfer of captured images to PC as well as various types of camera control from the PC are allowed.Power can also supplied to the camera with only one cable.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Function |
spark optical emission
|
| Spectrum |
full-color
|
| Sensor |
CMOS
|
| Interface |
Camera Link
|
| Resolution level |
HD
|
| Other characteristics |
high-speed
|
