TR300 soldering table-top robot

The mta TR300 standard table-top robot was designed for semi-automated applications requiring point-to-point soldering from above.

This machine is typically purchased by customers looking to improve the consistency, precision, and quality; increase the throughput and decrease the reliance on highly-skilled hand soldering. In cases where it is difficult to justify the cost of fully-automated equipment or the product requires human dexterity to load, the TR300 is the ideal solution.

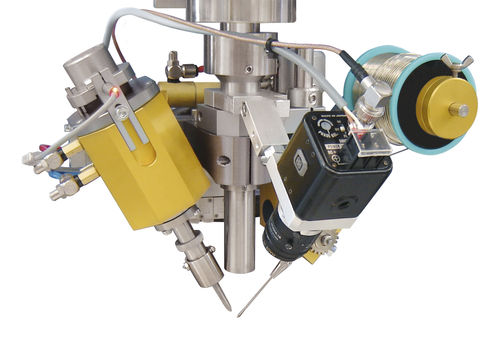

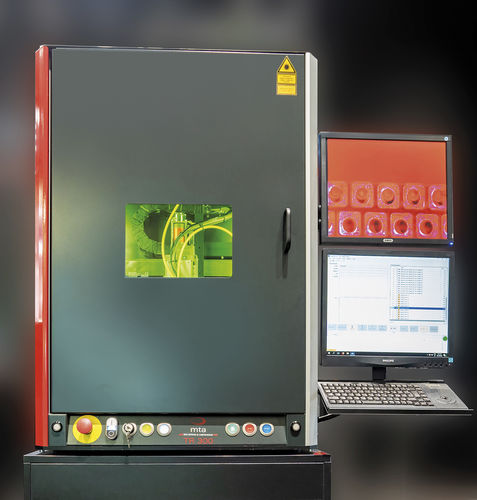

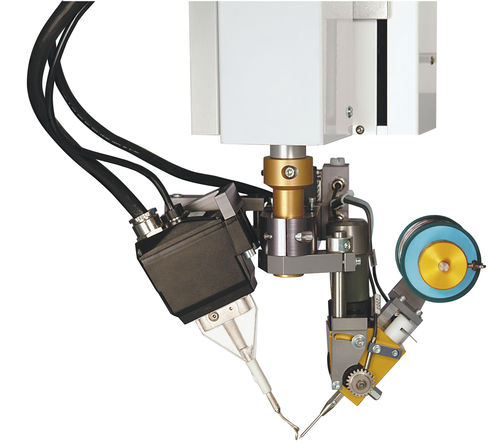

The TR300 can be equipped with any of mta’s soldering heads: soldering iron, induction, microflame and laser. For the laser soldering, the TR300 platform is guarded with metal sides and a mechanical door to protect operators from the laser.

The main features of our TR300 include:

•Sturdy aluminium frame
•4-axis soldering robot, Y-axis in the base to also present parts to the operator
•300x300mm working area
•Industrial PC controller with Embedded Windows® operating system
•Intuitive menu-driven mta MotionEditor software

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	4-axis 3-axis
Function	for welding soldering for production handling
Mounting	benchtop
Application domain	for the automotive industry for the pharmaceutical industry for the electronics industry for medical applications
Other characteristics	compact vision system OEM
