Solar pump variable frequency drive ACV30-PV

Solar pump variable frequency drive ACV30-PV

Solar pump variable frequency drive ACV30-PV

About

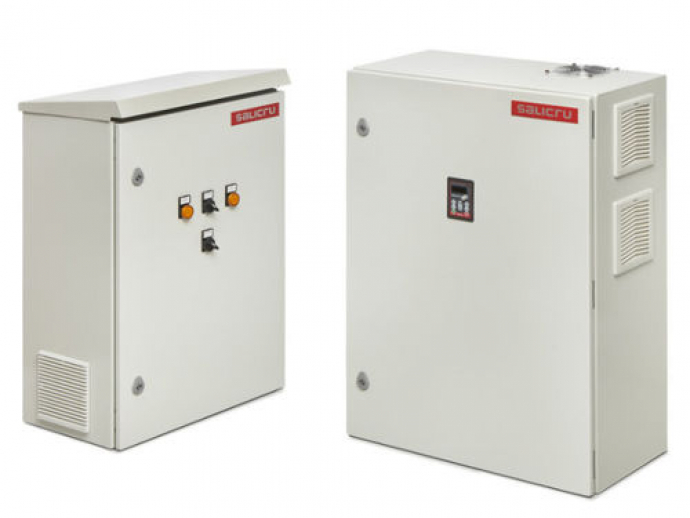

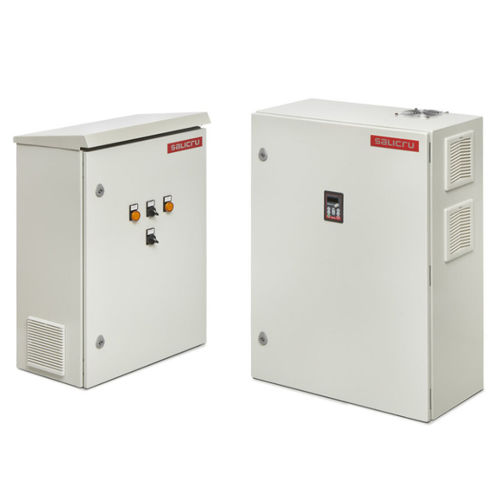

outdoor Complete solution for solar-powered pumping facilities indoor

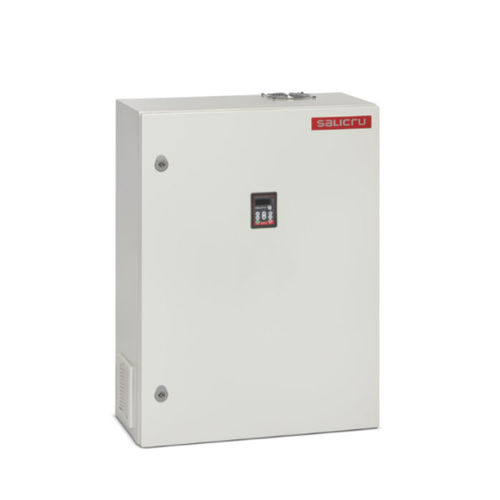

The ACV30-PV cabinets offer a fully finished solution for solar-powered pumping facilities that use pumps of up to 5.5 kW. Depending on the model, they can be mounted indoors or outdoors, and offer the option of isolated systems (powered solely by solar panels), systems with automatic switchover to the power generator or mains, and systems with manual switchover.

They incorporate the CV30-PV drive, which is specifically designed for solar-powered pumping, and depending on the model they also include the BOOST MOD-320-PV booster module, which significantly reduces the number of panels required. They are equipped with the necessary protection at the solar panel input (DC circuit breaker and over-voltage protector) and, where applicable, the AC input (circuit breaker and contactor). As the distance between the drive and the pump can be considerable, all models are fitted with an output ferrite in order to prevent potential pump breakdowns; moreover, for particularly long distances (usually over 100 metres), the option of cabinet-mounted sine-wave filters is available.

To ensure full control of the system, the cabinets also include a water level sensor and digital clock/timer. This can be used to protect the pump against dry operation, and to set the system’s operating times. Without a doubt, it is a solution that offers installers tremendous convenience and reliability, owing to the fact that potential issues with mounting and configuration are reduced to a minimum.



PARAMETERS

Parameter Name Parameter Value
Type
  • three-phase
  • single-phase
Mounting
cabinet
Applications
for solar pump
Power (W)
  • 500 - 500
  • 200 - 200
