About

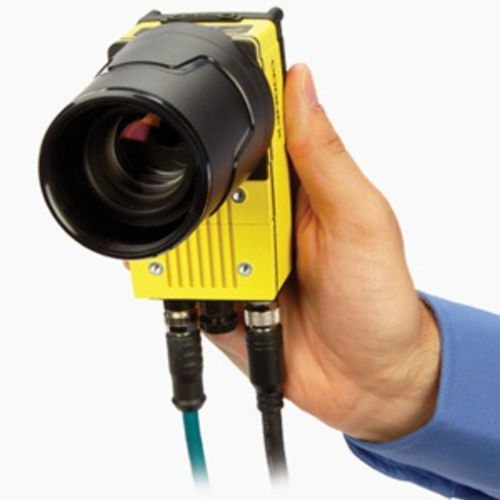

The In-Sight 9902L 2K line scan smart camera is a high resolution self-contained vision system ideal for detailed inspections of large, cylindrical, or continuously moving objects. The 9902L acquires up to 16,000 lines of 2,000 pixels per line to produce a 32MP image that can used to detect even the smallest features and defects. Each pixel line is acquired at 67,000 lines per second to keep up with the fastest production lines. This standalone vision system only requires a small view of the target part, making it an ideal choice for installations with restrictive field of view or mounting space requirements.
The only self-contained line scan system

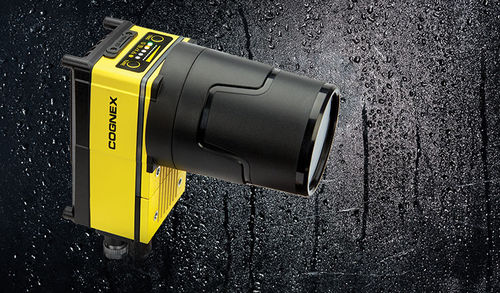

The In-Sight 9902L is the only embedded industrial line scan system that processes images directly on the camera. Onboard processing eliminates the inconvenience of having to install a separate controller. Plus, the IP67-rated housing protects the system from liquids and dust without the need for an external enclosure.
Inspects long, cylindrical, and continuously moving parts

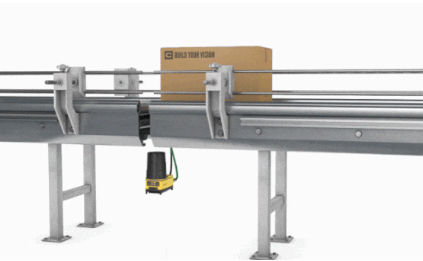

Line scan cameras are an ideal choice for inspecting oversized or cylindrical objects on fast-moving production lines. There are many applications for line scan, the most common including:
• Cylindrical objects, such automotive filters and batteries, where 100% if the product’s surface can be inspected as it rotates along the production line

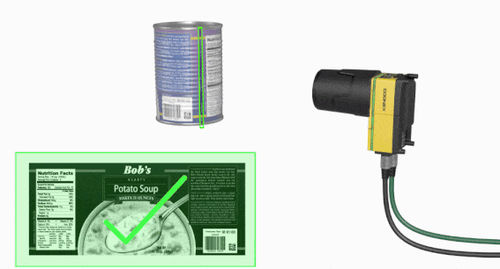

• Label inspection on curved surfaces, such as soup cans or bottles wrappers, that can be “unrolled” into a 2D flat surface for inspection
• Large objects, such as solar cells and car door panels that can be imaged and inspected as a whole
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
| Technology |
digital
|
| Function |
inspection
|
| Spectrum |
monochrome
|
| Sensor |
CMOS
|
| Interface |
Ethernet
|
| Resolution level |
2k, 2048 x 1536
|
| Other characteristics |
|
