Quality inspection during the forming process

Automobile

+ Optical inline inspection
+ Laser code recognition
+ Crack detection
+ Weld seam inspection
+ Distance measuremen

Agricultural economics

+ Deformation test
+ Maturity & color change
+ Pest detection
+ Foreign body detection

Forestry

+ Pattern recognition
+ Branch detection
+ Mushroom detection
+ Insect detection

Research

+ Research projects
+ Education

Robust and impact-resistant aluminum housing
Versatile connection options
Web interface for camera control
Waterproof & weatherproof

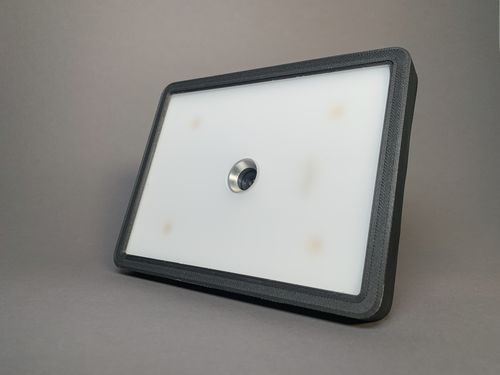

Freely configurable integrated lighting
Autofocus with integrated TOF distance measurement

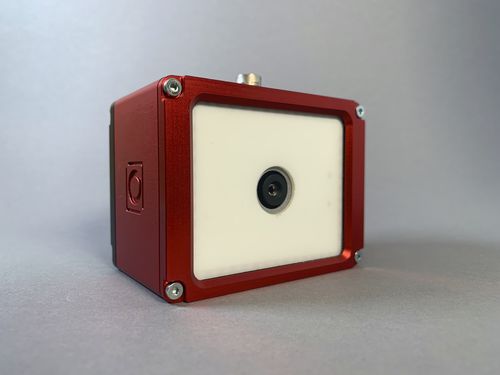

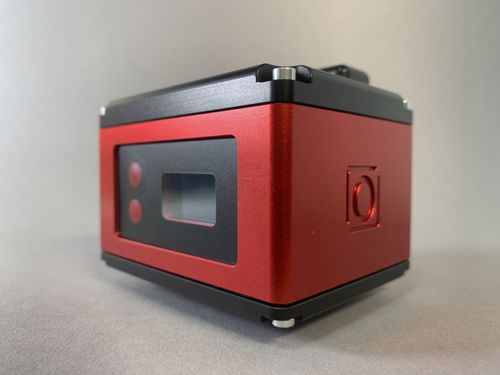

Vision and Inspection Unit

The area of application of the evoVIU begins where it is necessary to look at the decisive detail. For example, in the quality inspection during the forming process. Often only micrometers decide between the target and the faulty part. The evoVIU smart camera was developed to continuously increase the quality of the components and thus reduce the number of rejects. It is designed to detect, measure and evaluate defined quality characteristics already during material processing. At the same time, a possibility is created for maintenance to always have the system and the individual tool in view. Vision and inspection are thus combined in one tool.

Interface to Industry 4.0
The smart camera starts where the system is needed in industry. Can be used immediately and quickly. Equipped with the latest technological standards and interfaces, the VIU also tries to position itself as a bridge between efficient production and the age of digitization.

Parameter Name	Parameter Value
Applications	laboratory industrial machine vision medical for vehicles for production for biomedical research for scientific applications for the automotive industry for process monitoring for the chemical industry education for research and development for pallet detection for quality control rugged for pharmaceutical applications agriculture for the metallurgical industry packaging machine for the glass industry for building diagnostics for metal surfaces for the food industry for pipes for embedded devices for sport applications for barcodes for access control
Technology	digital
Function	security detection for optical inspection image processing measuring safety
Spectrum	full-color
Sensor	CMOS, CCD
Interface	GigE Ethernet IP
Resolution level	HD, full HD, UHD
Resolution	5 Mpx
Other characteristics	with global shutter smart day/night high-sensitivity autofocus explosion-proof outdoor zoom wireless robust networked lightweight waterproof indoor wide-viewing angle low-noise level with screen dome stabilized stand-alone high dynamic range low-light vandal-proof
