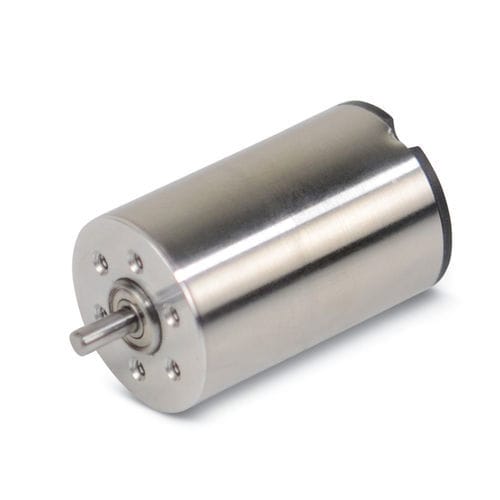

The 16ECP24 brushless DC slotless motor is a cost optimized compact solution without compromising on premium performances. The 16ECP24 provides the right balance between torque and speed in a compact short length.

Product Highlights
- 24mm long - very compact solution
- 2 poles slotless
- With Hall sensors
- Lower power losses results in higher efficiency
- No cogging torque for smooth rotation
- Maximized performance/price ratio

Customization Available
- Connectors
- Custom shafts - flats, knurling, diameter, length
- Coil modifications - resistance and inductance
- Different optimization (speed or direction)
- Dust protection sealing of cables output
- Without hall sensors
- Special lubricants

Applications
- Bionics & Exoskeleton Systems
- Dosing and Dispensing Systems
- Electric Grippers
- Electric Grippers for Robotics
- Instrumentation
- Medical Analyzers
- Miniature Pumps

Parameter Name	Parameter Value
AC/DC	DC
Voltage (V)	12 - 15
Protection class	waterproof
Configuration	aluminum stainless steel slotless compact miniature
Number of poles	2-pole
Applications	for pumps industrial for medical equipment for robotics for machine tools for water pumps for medical applications
Power (W)	23 - 23
Intensity (A)	0.4 - 0.6
Torque (Nm)	0.004 - 0.004
Rotational speed (rpm)	20000 - 20000
Diameter (mm)	16 - 16
Operating temperature (°C)	-30 - 100
