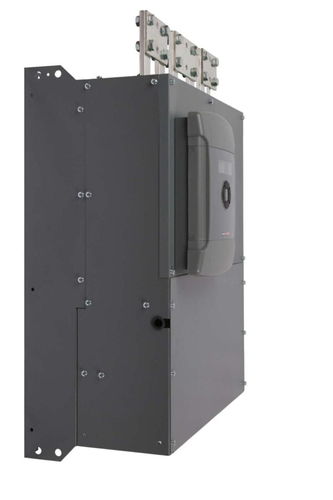

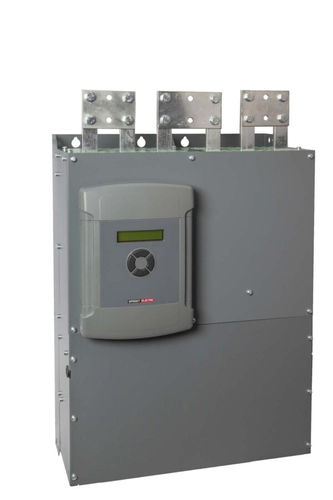

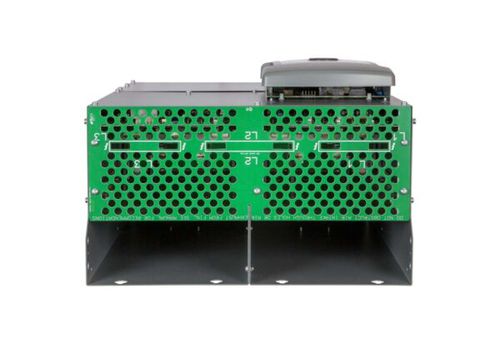

Slip-ring motor motor controller JL1025 series

Slip-ring motor motor controller JL1025 series

Slip-ring motor motor controller JL1025 series

About


JL1025
High-performance digital 2Q AC Slip-Ring motor controller. 12V – 500VAC supply voltage. Output power up to 595kW.

PROTECTION
– Interline device networks
– High energy MOVÕs
– Instantaneous over-current
– Field failure and over-current
– Motor over-temperature
– Thyristor stack
– over-temperature
– Mains supply phase loss
– Mains synchronisation loss
– Armature over-volts
– Speed feedback failure
– Stall protection
– Standstill logic
– Thyristor ÔtriggerÕ failure
– Digital output short circuit

INPUTS/OUTPUTS
ANALOGUE INPUTS
– 8 total (resolution 2.5mV+sign)
– All configurable
– All have programmable thresholds and 4 voltage ranges
– +/- 5/10/20/30V
– All inputs are over voltage protected and can also be utilised as digital inputs ANALOGUE OUTPUTS
– 4 Total (resolution 2.5mV+sign)
– 1 armature current output
– 3 configurable
– All outputs are short circuit protected
DIGITAL INPUTS
– 17 total
– All configurable
DIGITAL OUTPUTS
– 7 Total (24V logic 350mA total)
– Short circuit protected
– Over temp and
– over voltage protected
– All configurable

STANDARD SOFTWARE FUNCTIONS
– Full suite of centre winding macros
– Motorised pot simulator with memory
– 2x PIDs (undedicated)
– 2x Summers (undedicated)
– 2x Filters (undedicated)
– Delay timer
– Current Profiling
– Spindle Orientation
– Jog/Crawl functions
– Dual motor swap
– Latch
– Linear or S ramp
– Slack take up
– Batch counter
– Draw control
– Auto self-tune current loop
– 3 user programmable drive configurations

ALARM STATUS
– First fault latched and automatically displayed
– Fault automatically saved at power off MONITORING
– All analogue input voltages
– All digital input states
– All analogue output voltages



PARAMETERS

Parameter Name Parameter Value
AC/DC
AC
Motor type
slip-ring motor
Other characteristics
  • programmable
  • 4-quadrant
  • digital display
  • LCD display
  • 2-quadrant
Input/output
digital input, analog input, digital output, analog output
Input voltage
595 VMax.: 600 VMin.: 12 V
