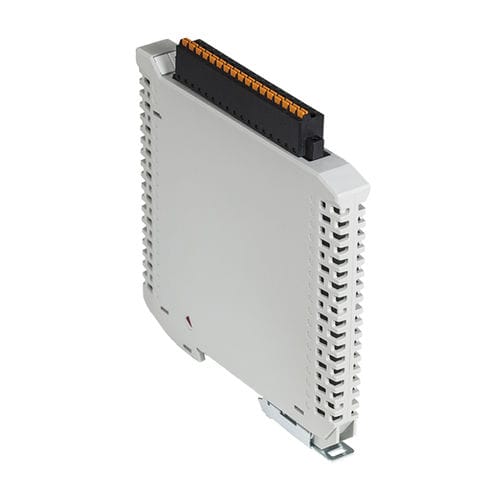

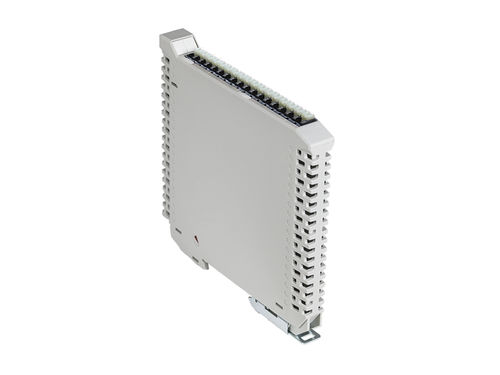

The EZC-D102-XN is a 16-channel Digital Output slave module of TPM EtherCAT® Add-on modules with NPN type. EZC-D102-XN can support local CAN bus through CAN Coupler, EZC-N100. With EtherCAT® control, it will lead to fast ethernet and full-duplex serial interface. The transmission speed is up to 100 Mbps. EZC Add-on moduels can provide high-speed, high-accuracy and low-cost remote I/O for EtherCAT®.
Features
● 16-Ch. DO slave module with NPN type
● TPM EtherCAT® add-on module
● Local bus support with CAN
● Pluggable terminal block with spring plug connectors
● DIN rail mounting (L-97 x W-100 x H-12 mm)
EtherCAT®
Serial interfaceFast Ethernet, Full-Duplex
Distributed Clock1ms
Surge protection10KV
Transmission speed100 Mbps
I/O isolation voltage3750Vrms
Output typeNPN: open collector Darlington transistors
Switch capacityEach output Ch. is 100mA at 24VDC
Response timeOn to Off, about 50µs ;
Off to On, about 10µs
Over current protection1A (Max) for each port (8-Ch.)
General
Power input24VDC±10%
Power consumption2W typical
Working temperature0 to 60℃
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
digital
|
| Bus |
Ethernet, CAN Bus, EtherCAT, serial
|
| Type |
remote
|
| Number of inputs/outputs |
16 digital outputs
|
| Other characteristics |
slave
|
