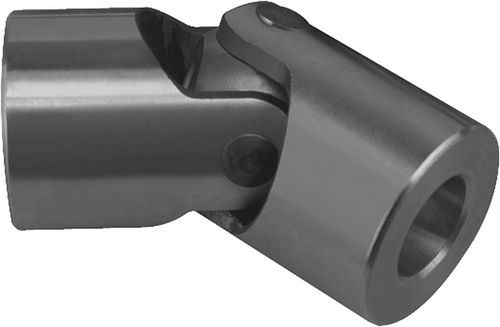

Norelem's 23403 Cardan Single Joints with Slide Bearings are manufactured out of steel materials, and feature hardened joint and slide bearing surface finishes. The joints showcase total transferable torque rates at 150 rpm, operating angles that approximate < 5", and bore hole depths smaller than DIN 808. They are capable of 45" swivel functions.

Parameter Name	Parameter Value
Configuration	single
Other characteristics	steel
Diameter (mm)	6 - 25
Torque (Nm)	7 - 210
Operating angle	Max.: 45 °Min.: 0 °
