VEICHI provides OEM/ODM Service for TOP Customers.

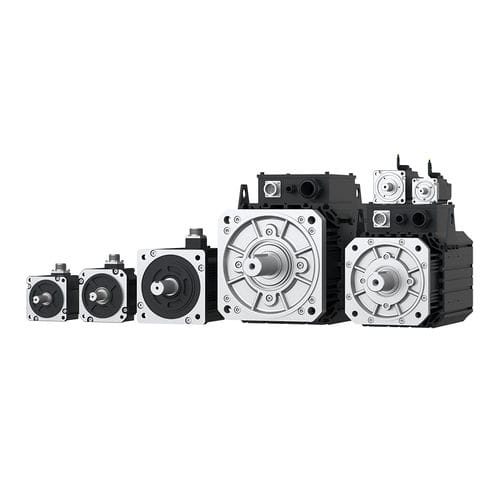

VEICHI VM7 Series Servo Motor is used together with the newly upgraded SD700 servo driver. Excellent performance design enables our motors to be widely used in various industrial fields, such as machine tools, packaging industry, industrial robots, and so on.

Product Advantages：
1. High-resolution encoder.
2. The high speed can reach 6000rpm.
3. Low noise and low vibration.
4. The heat dissipation is faster and the temperature distribution is more uniform.
5. High reliability and high stability.
6. 3~4 times overload capacity.
7. The volume is reduced by more than 20%.
8. Protection grade IP65.

Applications：
Electronic manufacturing equipment, numerical control equipment, packaging machinery, printing machinery, textile machinery, plastic machinery and glass equipment, testing equipment, etc.

Rated input voltage: 220V，380V
Rated power: 50w---55Kw
Flange:40mm---260mm
Encoder type:
23-bit muti-turn absolute value
17-bit single-turn absolute value
17-bit muti-turn absolute value

Brochure and Manual:
https://drive.google.com/drive/folders/1s_lJkk__g6hJ1domLYc8l5l87I6Dhgrl?usp=sharing

More details: https://www.veichi.com/servo.html

Parameter Name	Parameter Value
AC/DC	single-phase three-phase
Type	synchronous
Voltage (V)	230 - 240
Protection class	IP67 maintenance-free
Configuration	with brake permanent magnet hollow-shaft frameless small pancake type compact
Number of poles	10-pole 8-pole
Cooling mechanism	air-cooled water-cooled
Applications	for medical applications for robotics for the pharmaceutical industry with built-in encoder food for pumps for sewing machines for compressors packaging machine industrial for hair dryers for machine tools for winches for marine applications
Other characteristics	CNC performance closed-loop CANopen EtherCAT programmable integrated-drive motion control
Power (W)	100 - 250000
Torque (Nm)	0.32 - 47.7
Rotational speed (rpm)	1500 - 3000
