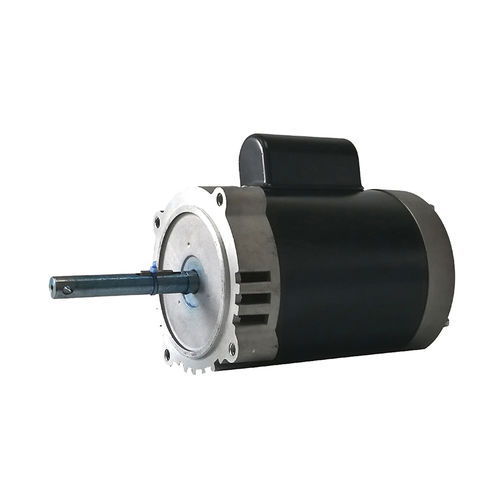

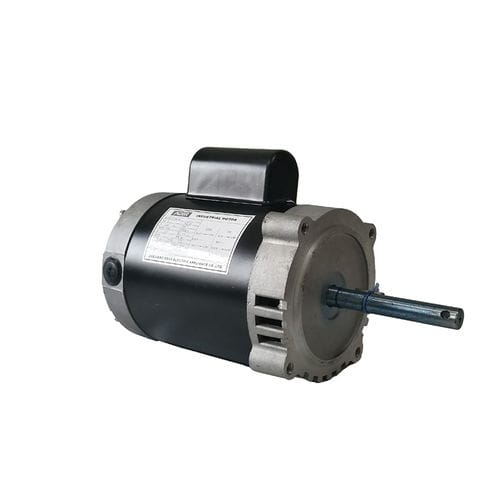

1/2 hp jet pump motor, Capacitor-start, single phase AC induction motor;
Metal housing and Aluminium front /end cover with fan cooling way, perfect temperature-raising control and lowe noise.

● Model: Y140-4
● Type: AC induction motor / AC Asynchronous motor
● Phase: Single Phase
● Housing Material: SPCC
● Surface Treatment: Perfect Powder Spray
● Voltage: 120V
● Frequency: 60hz
● Power: 1/2 hp
● Speed: 1800 RPM
● Poles: 4 poles
● SF: 1
● Frame: 56c
● Rotation: CW/CCW
● Bearing: Ball
● Protection Feature: ODP
● Insulation Class: Class F
● Overload Protection: Yes
● Thermal Protection: Yes
● Work condition: SI

Parameter Name	Parameter Value
AC/DC	single-phase
Type	induction
Configuration	capacitor
Number of poles	4-pole
Applications	for pumps
Rotational speed (rpm)	1800 - 1800
