About

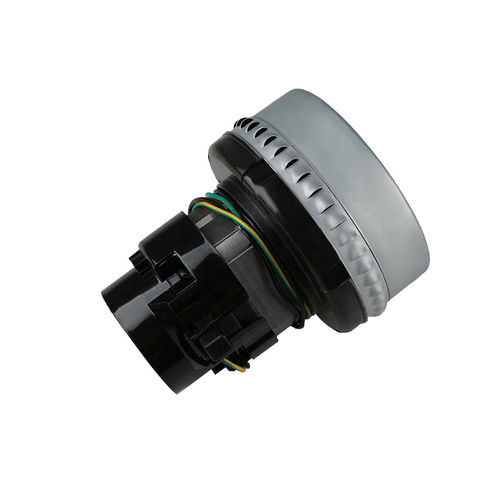

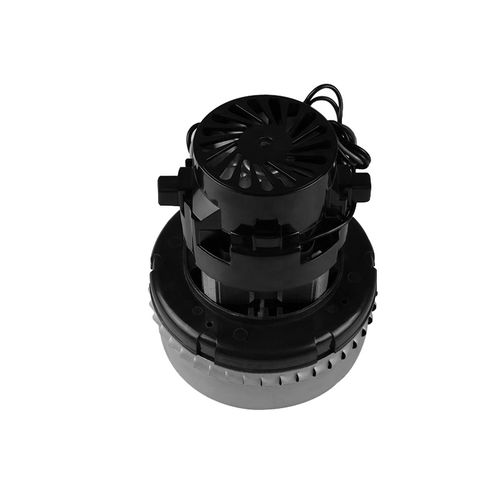

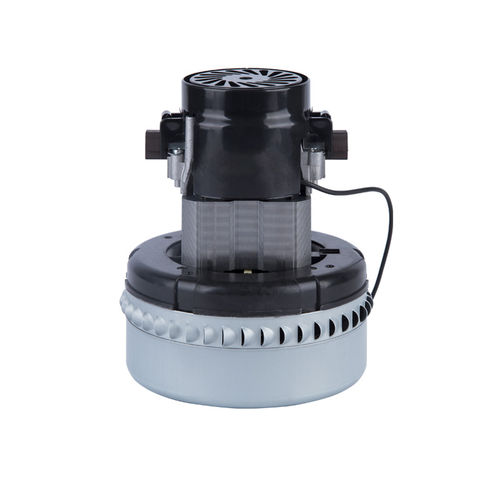

Name dry wet industrial vacuum cleaner motor
Voltage220-240V
Power1200w
LxWxH76x142x175mm
Maximum air volume440m3 / h(you can check the suction as video show)
Rated frequency 50/60HZ
Working principle: The vacuum cleaner motor consists of two parts about Motor and fan part .The speed of the general vacuum cleaner in 20000-30000 revolutions per minute because of the vacuum cleaner motor high requirements for speed , so the motor mainly adopts to series excitation motor also known as the series motor.
The vacuum cleaner motor fan part mainly has two main parts about impeller and fixed impeller .When the motor running at a high speed,it will produce negative pressure in air let and then form a vacuum.
Special temperature control device: Thermal protector of 115 degrees Celsius that binding on the stator winding can protect the motor effectively. Once the temperature reach 105 to 115 degrees Celsius,it can outage to protect motor.After waiting for winding temperature cooled down,please restart the cleaner power switch and you can continue to work. It's strictly prohibited the motor direct electricity running test in your hands After receiving the goods.Because the motor speed is too high and starting torque is too big. May be left out from your hand and damage motor .Even there is a risk of electric shock.Antibacterial rate is 98% Dust removal rate is 99% Disinfection rate is 98% Good filtering low noise Stable performance High service life .
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
single-phase
|
| Type |
EC
|
| Voltage (V) |
220 - 220
|
| Applications |
for suction units
|
| Power (W) |
200 - 200
|
