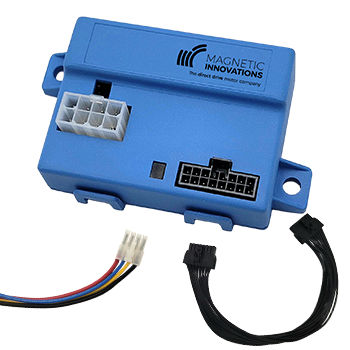

Magnetic Innovations’ Moving Magnet VCA series are matched with a dedicated motor controller which is able to establish sensorless position control (no external encoder required). Hence only 2 wires are required to power and position control the actuator. The controller is an encoder and drive in one package at the size of a matchbox which can power Moving Magnet VCA’s up to 1kW.

Features Motor Controller

• No encoder required
• 2-wire actuator control
• 48Vdc, 1kW drive power
• Digital I/O (4+4)
• Configurable Analog inputs (2) & outputs (2)
• Compatible w/all MI Moving Magnet VCA’s
• Canbus & Analog interface
• Matchbox size (86,5mm x 55mm x 21mm)
• HMI included

Parameter Name	Parameter Value
AC/DC	single-phase
Motor type	linear array
Other characteristics	digital analog
Input/output	I/O
Output voltage	48 V
