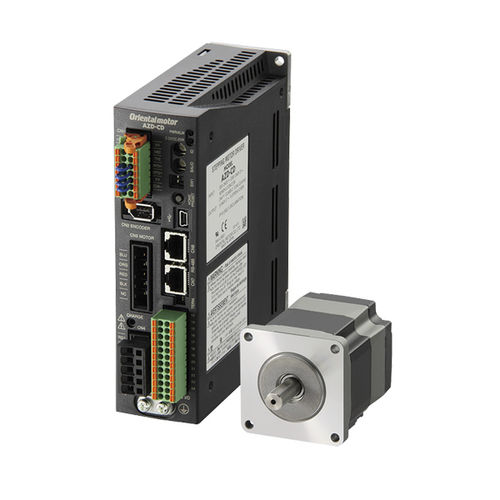

Closed Loop Stepper Motor Driver Combination for AC and DC Power Supply

AZ series

Features
Absolute sensor, position monitoring
No external sensors necessary
Low heat generation
EtherCAT, EtherNet/IP, Profinet, Modbus RTU

Frame size dimension: 20 - 90 mm
Maximum holding torque: 0.036 - 140 Nm
Resolution: 0.0036 - 0.36 °/cycle
Options: Electromagnetic brake, harmonic gear, planetary gear, taper hobbed gear, angular gear

Parameter Name	Parameter Value
AC/DC	single-phase
Type	stepper
Configuration	with brake with coder
Applications	for industrial applications for medical equipment for the semiconductor industry
Other characteristics	with gearbox high-efficiency low-vibration high-precision high-resolution EtherCAT with integrated controller closed-loop
Power (W)	0 - 0
Torque (Nm)	0.3 - 140
