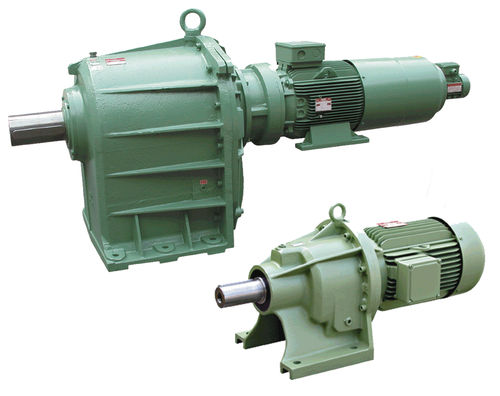

The RE and RKE series gearboxes are featured by a cast iron housing , with feet or flange , and are available coupled to compact version motors ( RE ) or coupled to standard motors with B5 flange ( RKE ). The reduction ratios , at 2 or 4 steps according to the different versions , are made with cylindrical gears with helical teeth,ground or shaved, designed according to ISO 6336 standards. Input shaft versions or units just equipped with coupling flange , without motor , are available .
The input power goes up to 90 kW , according to the different sizes , and the output torque goes up to 19.000 Nm.

Parameter Name	Parameter Value
Motor type	single-phase
Type	helical
Shaft orientation	coaxial
