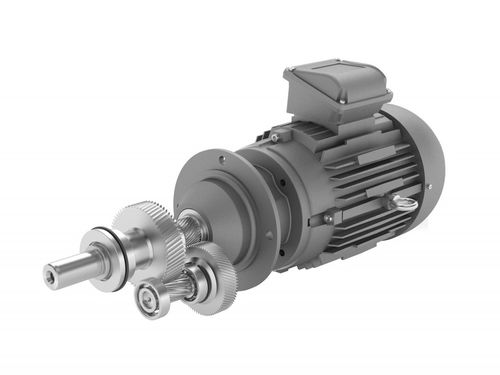

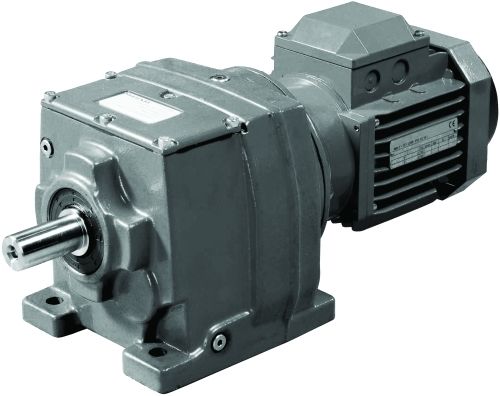

Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet most requirements.
Full Description
Series M helical inline geared motors and reducers provide a very efficient and compact drive solution to meet your requirements.

It takes advantage of being developed from many years of accumulated design expertise, together with the use of high quality materials and components.

The end result is a series of speed reducing and geared motors offering high load carrying capacity, high efficiency, quiet running and reliability. These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.

Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.

All gear cases are cast iron.

Parameter Name	Parameter Value
Motor type	single-phase
Type	helical
Shaft orientation	coaxial
Power (W)	5000 - 10000 100 - 500 10 - 50 50 - 100 0 - 10 500 - 1000 1000 - 2000 2000 - 5000 10000 - 20000 20000 - 50000 100000 - 200000 50000 - 100000
Torque (Nm)	5 - 10 1 - 5 10 - 20 20 - 50 500 - 1000 0.5 - 1 0.2 - 0.5 50 - 100 0.1 - 0.2 0 - 0.1 10000 - 10000 100 - 200 1000 - 2000 5000 - 10000 200 - 500 2000 - 5000
Product applications	flange
Other characteristics	compact modular
Gear ratio (unit)	1 - 250
