Dust Water Proof Enclosed Ball Screw Linear Module
Short Description:

Technical Feature

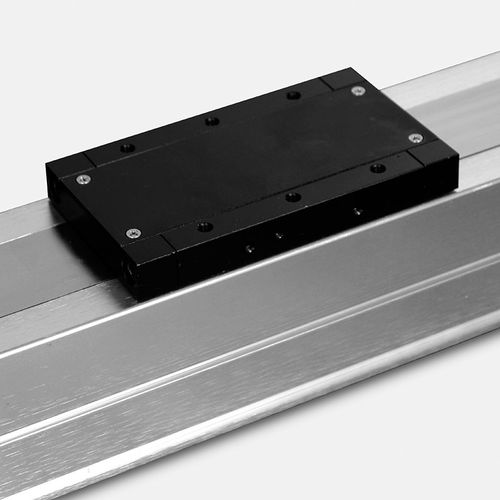

FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

Range of Application

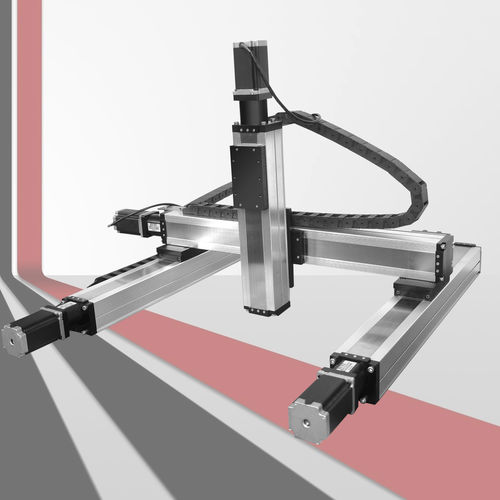

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.


Series: FSL80
Stroke Range: 50mm-1200mm
Position Accuracy: 0.02mm
Max Speed: 220mm/s
Max Load: 40kg
Ball Screw: G1610


To get professional service, we have some questions for you,
please try to answer in your enquiry:
1.What machine do you use the stage on?
2.How long stroke do need the linear be?
3.How is the load and speed need?
4.Do need motor and accessory together?
If need OEM or other special requirement, please tell us.

Parameter Name	Parameter Value
Number of axes	single-axis
Features	linear, automatic, vertical, horizontal
Applications	industrial for robots multi-function for cutting machine for construction equipment for hygienic applications
Other characteristics	compact servo controlled synchronized
Repeatability (mm)	0.02 - 0.02
Load (kg)	20 - 40
Speed (mm/s)	60 - 220
