Technical Feature

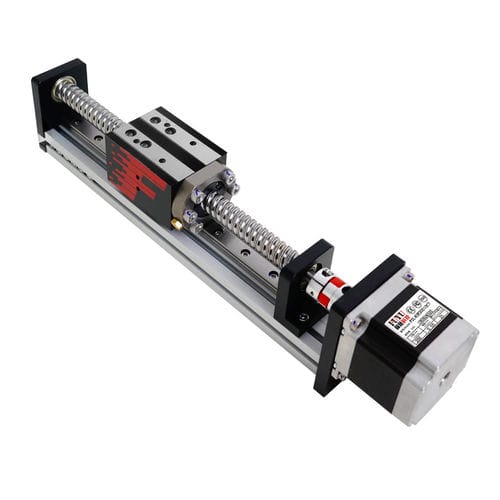

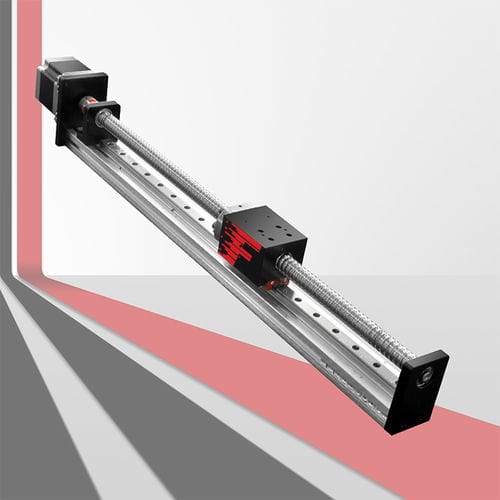

FSK40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

Range of Application

Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.


Series: FSK40
Stroke Range: 50mm~1000mm
Position Accuracy: 0.03mm
Max Speed: 255mm/s
Max Load: 25kg

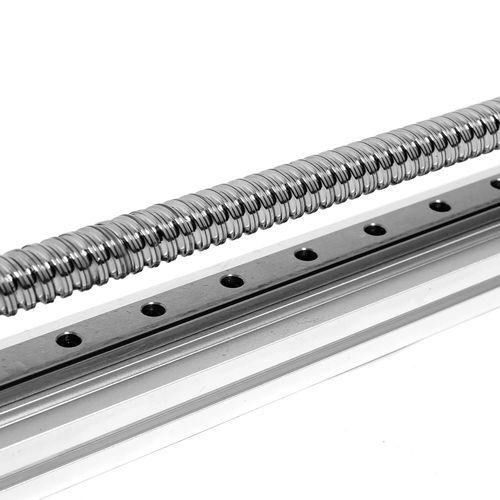

Ball Screw: G1204/G1605/G1610

To get professional service, we have some questions for you,
please try to answer in your enquiry:
1.What machine do you use the stage on?
2.How long stroke do need the linear be?
3.How is the load and speed need?
4.Do need motor and accessory together?
If need OEM or other special requirement, please tell us.

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.

Huge Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
custom OEM Solutions
Value-Added Services

New source, New Price, New Chance.

Parameter Name	Parameter Value
Number of axes	single-axis
Features	automatic, linear, vertical, horizontal
Applications	industrial multi-function for welding for robots for cutting machine
Other characteristics	compact servo controlled synchronized adjustable
