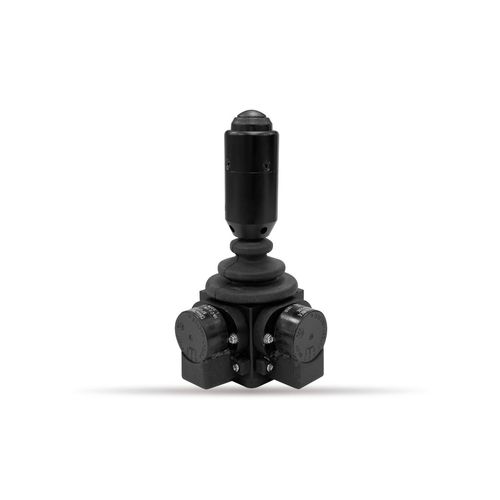

Potentiometer-type Joysticks JP30

Imported potentiometer incorporated
Metal housing case
Small-sized
2-dimensional coordinate type joystick
With rubber cover
With spring return device

- General Specifications

Operating angle:Approx. ±20°（from center position）
Operating force:Approx.4N～80N
Life expectancy:1000MΩ(500V.D.C.)
Power rating:0.1W
Electrical angle:Approx.40°

- Electrical Specifications (Switch)

Electrical specifications (switch):Push Button Switch
Rating:48V.D.C./0.1A
Electrical life expectancy:1,000,000
Insulation resistance:>1000MΩ(500V.D.C.)
Dielectric strength:1min(500V.A.C.)

- Special Specifications Available
Special knob:Available for customized knob; with push button switch (black as default), push button switch with light.Details please check "Other optional knobs".
Other special specifications:Available for add DEUTSCH connector(6pin); provide matching control module.

For other special requirements, please contact us at trade1@sakae.cn

Parameter Name	Parameter Value
Technology	single-axis 2-axis compact switch potentiometer resistance
Applications	for remote control for medical applications for utility vehicles for off-highway vehicle for aerial work platform for motorized stages for marine applications
Other characteristics	with buttons multifunction panel-mount IP65 with switch
