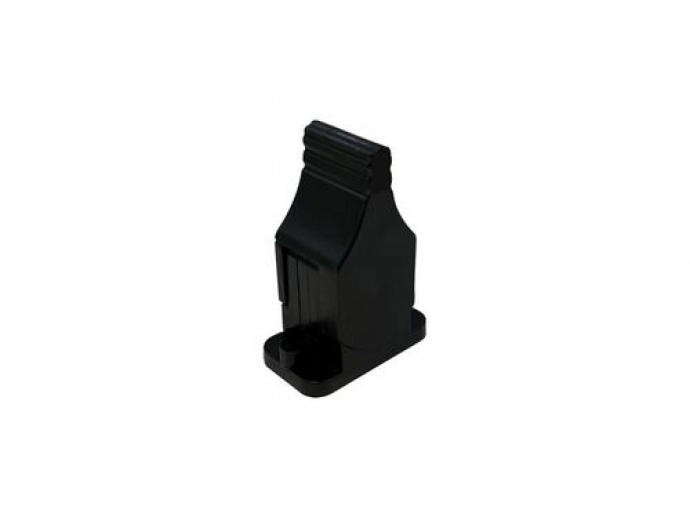

Non-contact hall-effect or potentiometric measurement technology
Single-axis, forward and backward finger operated
Special design for mobile machines
Small design and easy installation
Robust construction, long service life
Resistant to electromagntic field
0-5V or potentiometric output
IP66 protection

Agricultural machinery
Construction machinery
Crane and transport machinery
Forestry machinery
Mobile vehicles

Mechanical Specifications
Movement angle
Operating force
Life
Material
Weight
Environmental Specifications
Protection Class
Operating Temperature
Storage Temperature
Humudity
Electrical Specifications for Hall-Effect
Version
Sensor type
Resolution
Electrical interface
Supply voltage
Supply current
Load
Reverse Polarity Protection
Overvoltage Protection
Center tap output voltage
Output linearity tolerance
Electrical Specifications for Potentiometric
Version
±30° ±1
3N max
5 million cycles (hall-effect)
2 million cycles (potentiometric)
Delrin® POM-C EN 10204
~40gr
IP66
-20°C...+70°C
-40°C...+85°C
%10...%90 RH
Hall-effect, 1 axis
12 bit
0...5VDC
5 VDC ±%5
£30 mA
*1KQ
Yes
Up to 5.2V
2.5±0.1V
<±0.2V
Sensor type - Potentiometer, 1 axis
Resolution - Infinite
Supply voltage - <36 VDC
- 0%-100%Vdc output
- 10%-90%Vdc output
Output signal range - 15%-85%Vdc output
- 25%-75%Vdc output
Resistance - 5K
Resistance tolerance - <20%
Center tap angle - ±2.5°
Center tap output voltage - 48%~52% (±2%)
Directional switch supply voltage - <36 VDC
Directional switch Maximum current - 2mA
Breakout angle - ±5°
Contact resistance - <200Q

Parameter Name	Parameter Value
Technology	single-axis switch potentiometer resistance
Other characteristics	IP66
