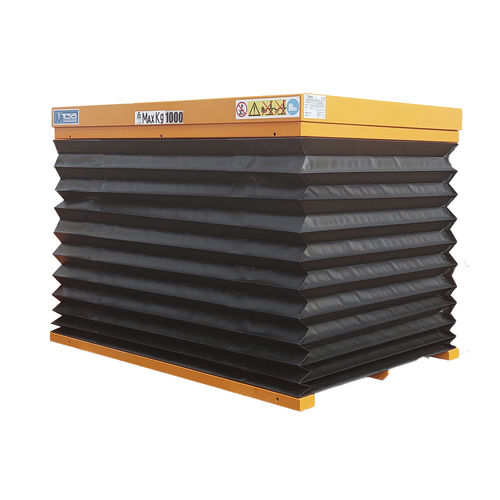

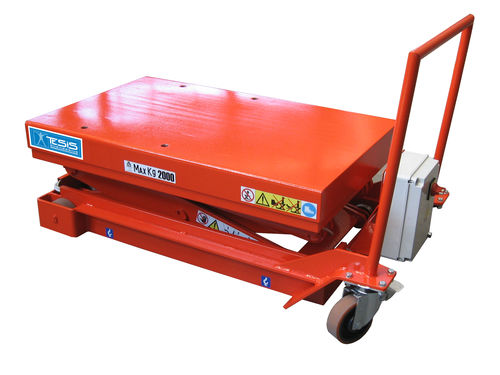

Simple scissor lift table XN

Simple scissor lift table XN

Simple scissor lift table XN

About


Rugged and reliable, the XN series lift tables are available in many load capacities and sizes, also on demand.

Characteristics:
Extendable push button or pedal controls
Power unit and electrical panel incorporated in the machine or external
Three-phase AC motor

Safety:
Anti-crushing device under the loading platform
Maintenance blocks
Parachute valve on cylinders

EC marking
Compliance with EN 1570 standards

Customizations:
-Dimensions on request
-Various platform top configurations
-Manual or motorized connection ramp
-Bellow skirting
-Fixed or removable railings
-Gates on board or at landing
-Push button holder column
-UL/CSA components
-Single-phase motor
-Configuration for DC Power (DC Motor)
-Manufacture in stainless steel
-Food grade hydraulic oil



PARAMETERS

Parameter Name Parameter Value
Technology
simple scissor
Operation
hydraulic, battery-powered, manual, pneumatic, electro-hydarulic
Type
  • stationary
  • mobile
Application
  • loading
  • for heavy loads
  • loading dock
Other characteristics
  • custom
  • with safety barrier
  • with ramp
  • high-performance
  • with protective bellows
Capacity
Max.: 80,000 kg (176,369.8 lb)Min.: 0 kg (0 lb)
Lifting height
Max.: 3,000 mm (118 in)Min.: 100 mm (4 in)
