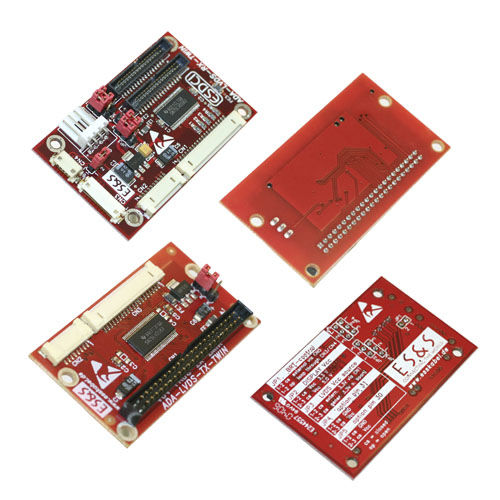

Signal converter TTL and LVDS

Small signal converters for TTL and LVDS displays facilitate the retrofitting and repair of older systems where displays and mainboards shall be replaced.

# LVDS-TTL
Small LVDS receiver to convert from LVDS to TTL signals. As entrance can LVDS input signals in the format 18 bits or 24 bit be present. The output is then conform to the input signals into 18 or 24 bit. A binary adjustment from 18 to 24 or from 24 to 18 bit will not be carried out. The output signal is always 18 bit signal width. Excess bits (LSD’s) are not used.

# TTL-LVDS
Small LVDS transmitter to convert from TTL to LVDS signals. As entrance can TTL input signals in the format 18 bit or 24 bit be present. The output is then conform to the input signals into 18 or 24 bit. A binary adjustment from 18 to 24 or from 24 to 18 bit will not be carried out
