Analog output amplifiers for load cells

Product Description

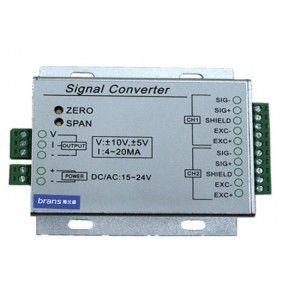

BRS-AM-103 signal transmitter is assemed with Aluminum housing and original compoment . Transmit and compensate signal while recieved. Changing force signal into standard voltage and current signal for Auto equipment and PLC acquiring. Zero and span is adjustable. Input and output overload protection.

Datasheet
Input for load cells - 0.8-6mV/V
Customized Analog Output - -10/-5 to 0 to 5/10V; 4-20mA
Accuracy - 0.05%F.S
Operation Environment - -20～50℃, ≤85%RH
Dynamic response - 1000HZ
Power supplier - 24VDC
Chanel for Load Cells - 2 Chanels

Parameter Name	Parameter Value
Type	signal analog
Applications	for load cells
