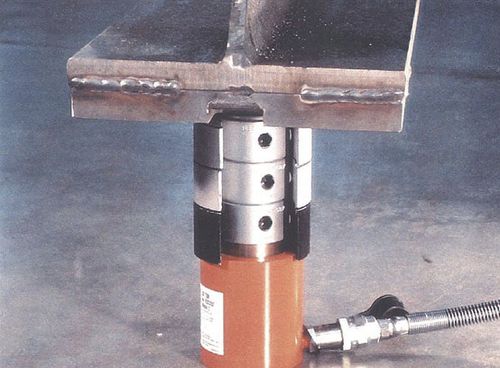

Single-Acting and Double-Acting Spring-Return cylinder. The RSS Series cylinder is ideal for confined areas from 3 1/2" (88,9 mm) to 11 7/16" (290,2 mm) clearance. Power Tech plated piston rods and gland nuts resist scoring and corrosion. Heavy duty return spring of the RSS Series cylinder provides fast piston return & low collapsed height. Coupler on 10 thru 50 ton models is angled upward 5° for added clearance. The RSS Series cylinder features a grooved piston top to keep loads from sliding. Cylinders can be “dead-ended” at full capacity. Removable carrying handles on 100 ton and 250 ton models.

Features

IDEAL FOR CONFINED AREAS WITH 88,9 TO 290,5 MM CLEARANCE.
■ “Power-Tech” nitro-carburization surface treatment inhibits corrosion and provides exceptional durability for the rod and piston.
■ Heavy-duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
■ Coupler on 10 - 50 ton models is angled upward 5° for added clearance.
■ Grooved piston top keeps load from sliding.
■ Cylinders can be “dead-ended” at full capacity.
■ Removable carrying handles on 100 and 250 ton models.
■ Complies with ANSI / ASME B30.1 safety standards.

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston
Configuration	double-acting single-acting
Other characteristics	short-stroke corrosion-resistant
Force (N)	250 - 250
Pressure	Max.: 10,393 psiMin.: 8,943 psi
Rod diameter	Max.: 6 inMin.: 2 in
Bore	Max.: 8 inMin.: 2 in
