The short-stroke cylinders of the CC series complete the wide range of special cylinders manufactured by our company for a variety of industrial sectors.

Available models
Standard version
Oil feed variants (without fitting)
Stem accessories
Magnetic sensors

Caracteristics

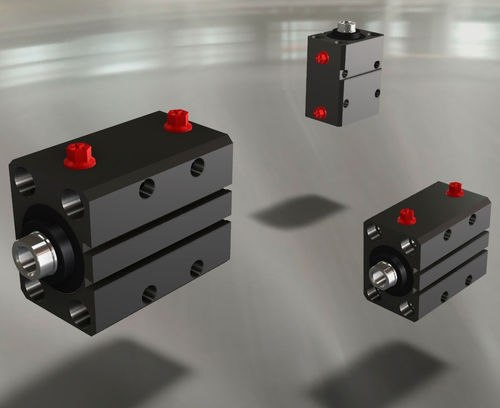

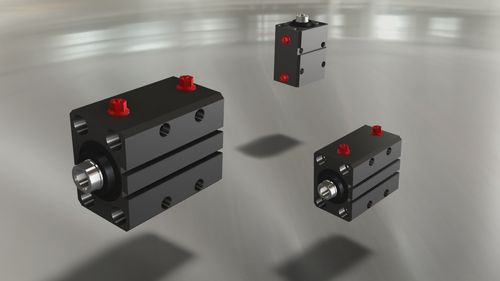

The CC short-stroke hydraulic cylinders can meet the need for small-sized presses.
The main feature of these cylinders is their reduced overall dimensions, compared with ISO cylinders, and therefore can be used to lock or move in very small spaces.

They are manufactured in the double-acting version, with magnetic sensors. Their body is provided with holes for sensors.

All CC short-stroke cylinders are equipped with a magnetic piston with two PTFE anti-friction shoes for a precise guide and reduced friction.

Cylinders can be clamped by means of the holes available on their body.

The CC short-stroke hydraulic cylinders by Tecnofluid meet the strictest reliability requirements, also under heavy duty, whenever precise pushes and considerable work loads are required.

Parameter Name	Parameter Value
Type	hydraulic
Technology	magnetic piston
Configuration	double-acting
Norms	ISO
Applications	industrial
Other characteristics	small short-stroke
Stroke (mm)	20 - 50
Pressure	Max.: 250 bar (3,625.9 psi)Min.: 0 bar (0 psi)160 bar (2,320.6 psi)
Bore	Max.: 50 mm (1.97 in)Min.: 20 mm (0.79 in)
