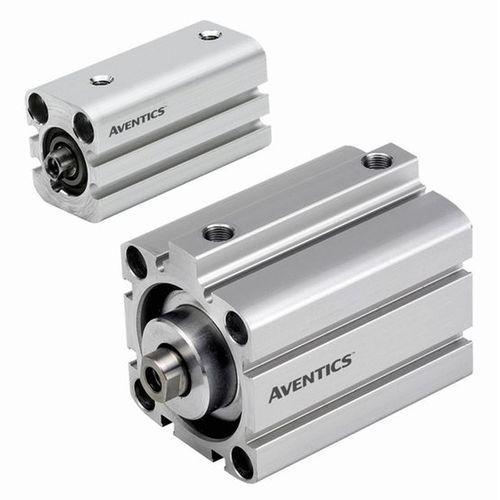

The AVENTICS Series 441 is a line of robust, compact short-stroke pneumatic cylinders. The devices have a durable single/double rod and anti-rotation device for extended service life. The cylinders are suitable for automotive, case packing, dust collector system, packaging, press room, and metal stamping applications.

Specifications
FunctionThrough Rod, Single Acting, Non Rotation, Double Acting, Single Rod
Standards / RegulationsATEX Zone 1-21, ATEX Zone 2-22
Body MaterialLight Alloy
Bore8 mm, 10 mm, 20 mm, 25 mm, 32 mm, 50 mm, 63 mm, 80 mm, 100 mm, 12 mm, 16 mm, 40 mm
Operating EnvironmentHazardous, Outdoor, Indoor

Features
Handles lubricated and unlubricated air
Wide range of options
Equipped for magnetic position detectors

Parameter Name	Parameter Value
Type	pneumatic
Configuration	double-acting single-acting
Protection class	robust
Other characteristics	compact short-stroke double wide ATEX
Stroke (mm)	100 - 100
Ambient temperature	Max.: 70 °C (158 °F)Min.: -20 °C (-4 °F)
